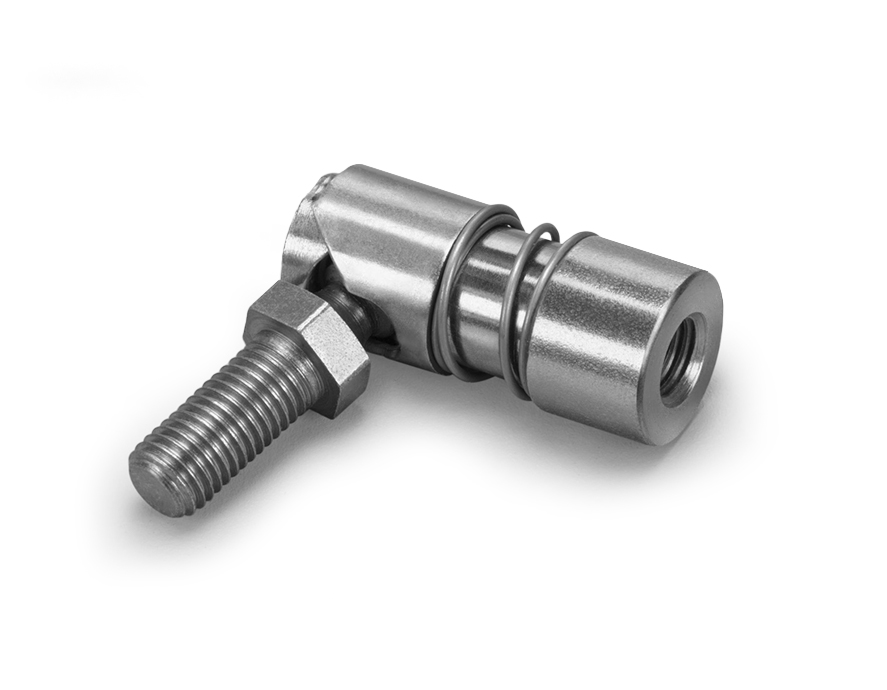

QM10 — Ball Joints photo

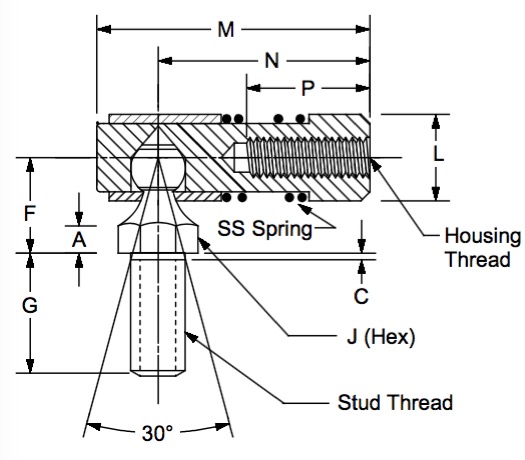

QM10 dimensional drawing

QM10

Ball Joints · Female

Female M10 x 1.50 RH Housing M10 x 1.50 RH Stud Quick Disconnect

Part numberQM10
CategoryBall Joints
TypeFemale
Housing ThreadM10 x 1.50 RH
Stud ThreadM10 x 1.50 RH
FinishZinc Yellow
A4.75
F17.45
G22.23
J12.70
L19.05
M44.45
N34.93
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: Quick Disconnect Ball Joints are used in applications where the housing needs to be easily disconnected from the ball stud. This is accomplished by pulling back the spring-loaded outer housing. Plating: parts are plated zinc with a yellow dichromate finish. Specials: Special sizes and configurations are available in volume. Video: https://www.youtube.com/watch?v=mnn-AjcFuKw
