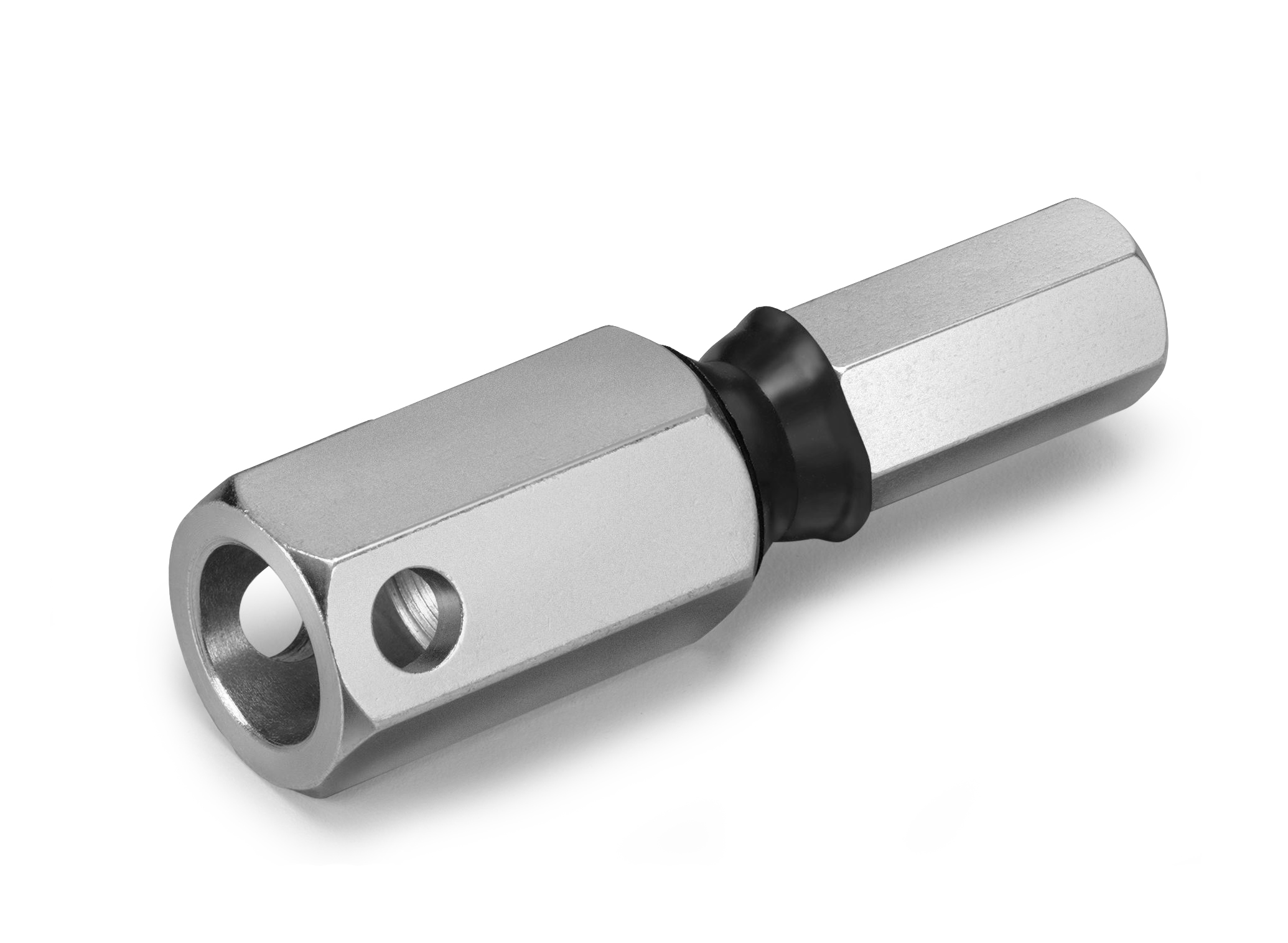

FFIL312
Ball Joints · Female
Female 5/16-24 RH Housing 5/16-24 RH Stud Direct Valve Mount
| Part number | FFIL312 |
| Category | Ball Joints |
| Type | Female |
| Threads | 5/16-24 RH |

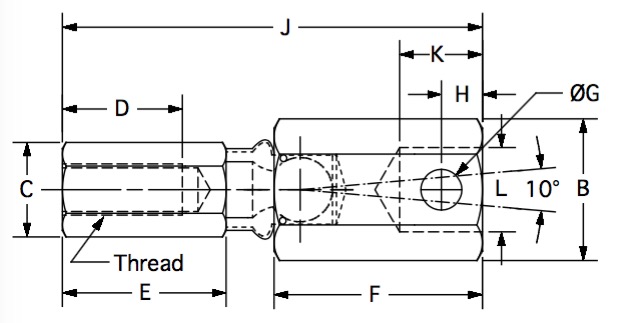

| B | 3/4 hex |
| C | 1/2 hex |
| D | 0.750 |
| E | 1.000 |
| F | 1.270 |
| G | 0.250 |
| H | 0.250 |
| J | 2.563 |
| K | 0.563 |
Product overview
Application: Direct Valve Mount Ball Joints are used to provide a direct push/pull action on the hydraulic valve spool. The threaded end of the joint is typically assembled to either a connecting rod or a push/pull cable. The other end of the joint is connected with a clevis pin to the valve spool. Commonly used as motor grader control linkage ball joints.
Material: low carbon steel. Heat treated ball stud.
Metric: metric versions are available in volume.
Plating: plated zinc with a yellow dichromate finish.
Specials: Special sizes and configurations are available in volume.
