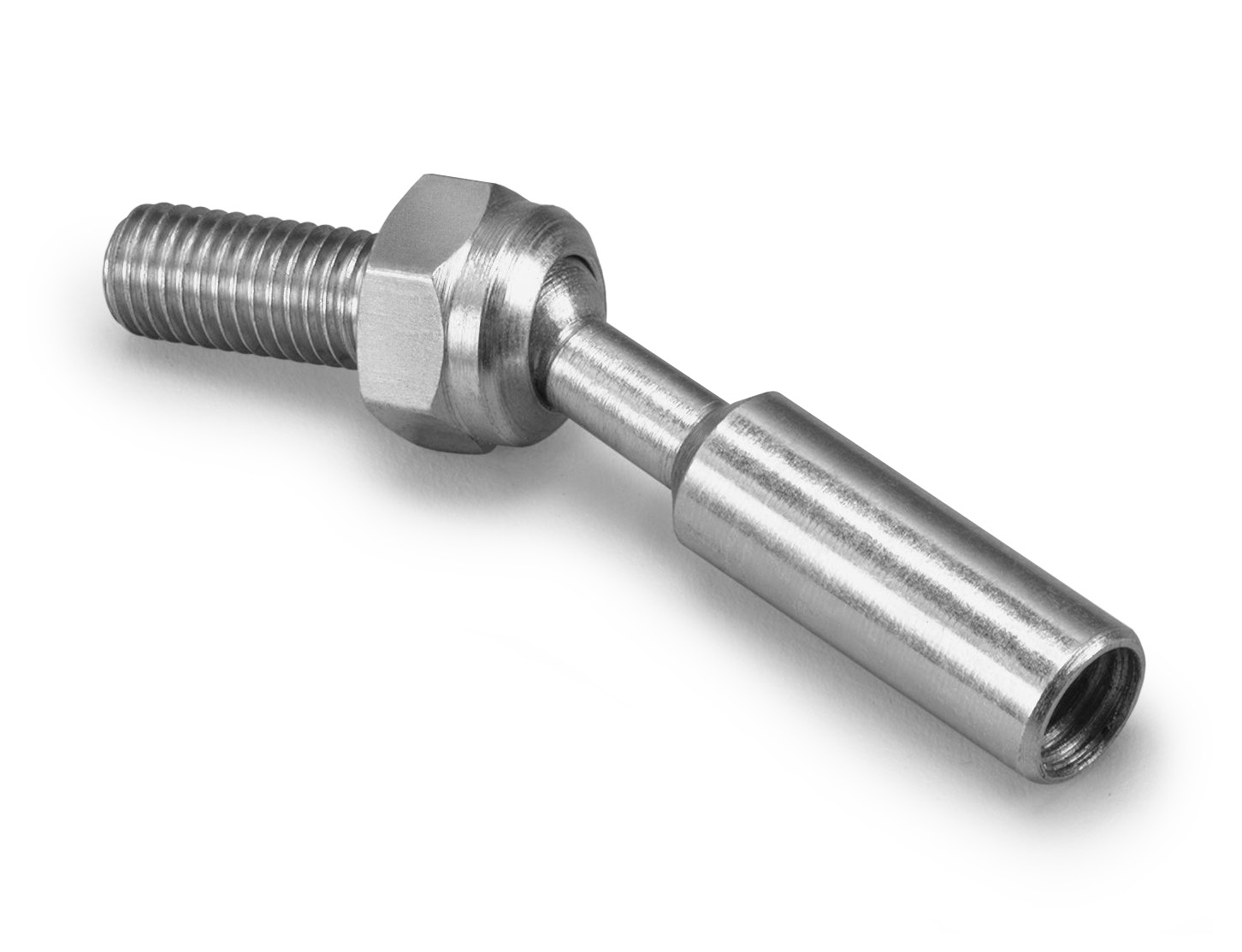

FMIL250C
Ball Joints · Female
Female 1/4-20 RH Housing 1/4-20 RH Stud Inline
| Part number | FMIL250C |
| Category | Ball Joints |
| Type | Female |

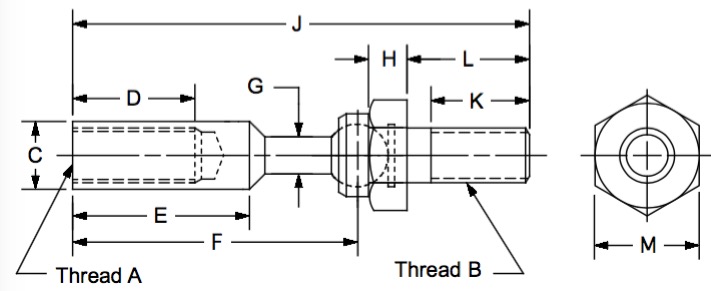

| Thread A | 1/4-20 RH |
| Thread B | 1/4-20 RH |
| C | 0.312 |
| D | 0.560 |
| E | 0.810 |
| F | 1.310 |
| G | 0.169 |
| H | 0.172 |
| J | 2.090 |
| K | 0.500 |
Product overview
Application: FMIL-series Ball Joints are used in light-duty applications where the push/pull force in the linkage system is transferred generally along the centerline of the linkage itself. The ball stud provides some conical movement to allow for misalignment in the system. Often used on solenoids and engine shut-down kits.
Material: low carbon steel. Heat treated ball stud. Per SAE J490 type DS.
Metric: metric versions are available in volume.
Plating: plated zinc with a yellow dichromate finish.
Specials: Special sizes and configurations are available in volume.
