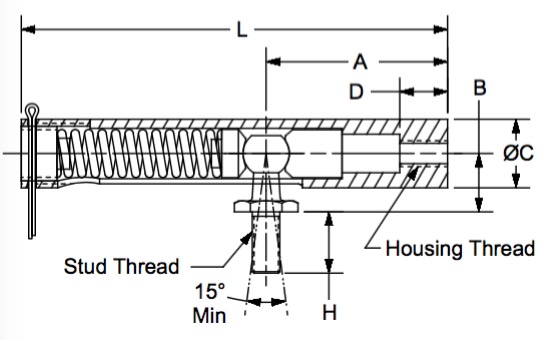

AS3-4 dimensional drawing

AS3-4

Ball Joints · Female

Female 10-32 RH Housing 1/4-28 RH Stud Tensioned Ball Stud

Part numberAS3-4
CategoryBall Joints
TypeFemale
Housing Thread10-32 RH
Stud Thread1/4-28 Stud
A1.657
B0.531
C0.625
D0.438
H0.563
L3.898
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: AS-series ball joints feature a spring-loaded ball stud. This special feature reduces backlash on the ball stud and allows the user to adjust somewhat the location of the ball stud. Constructions: Low carbon steel, plated with a yellow dichromate finish. Per SAE J490 Type AL.
