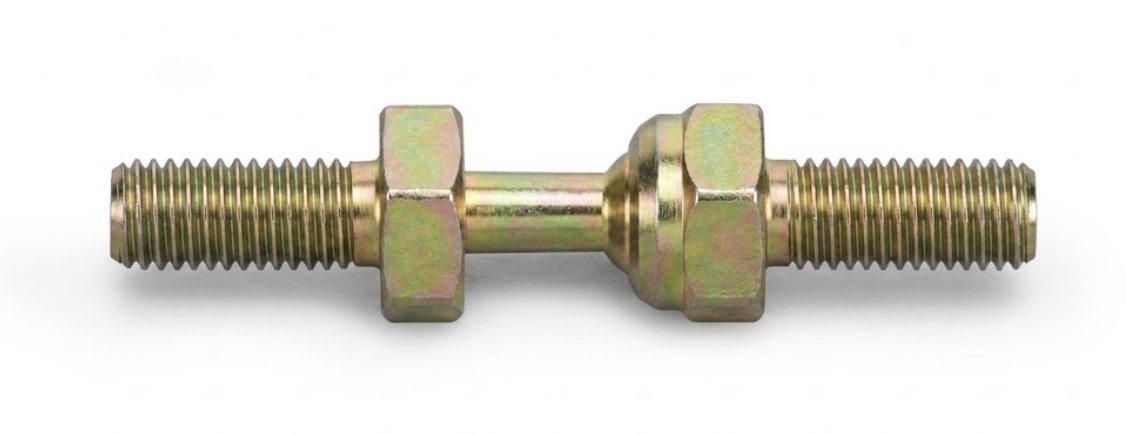

MMIL250
Ball Joints · Male
Male 1/4-28 RH Housing 1/4-28 RH Stud Inline Plated Zinc Yellow

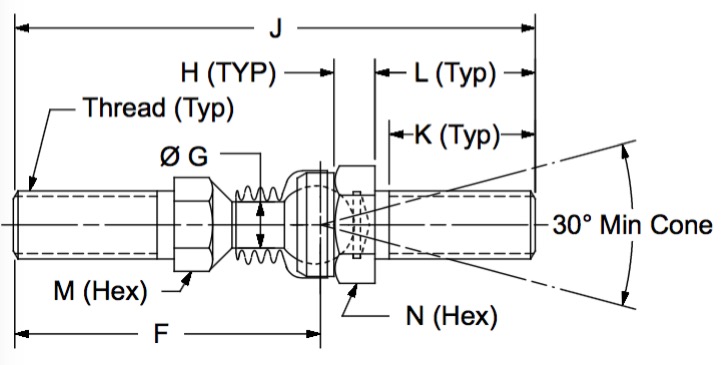

| Part number | MMIL250 |
| Category | Ball Joints |
| Type | Male |
| Threads | 1/4-28 RH |
| F | 1.584 |
| G | 0.189 |
| H | 0.172 |
| J | 2.625 |
| K | 0.688 |
| L | 0.750 |
| M Hex | 0.437 |
| N Hex | 0.437 |
Product overview
Application: MM-series Ball Joints are used in light duty applications where the where the push/pull force in the linkage system is transferred generally along the centerline of the linkage itself. The ball stud provides some conical movement to allow for misalignment in the system.
Material: low carbon steel. Heat treated ball stud.
Metric: metric versions are available in volume.
Plating: plated zinc with a yellow dichromate finish.
Specials: Special sizes and configurations are available in volume.
