Home / Catalog / Ball Joints / JSB375

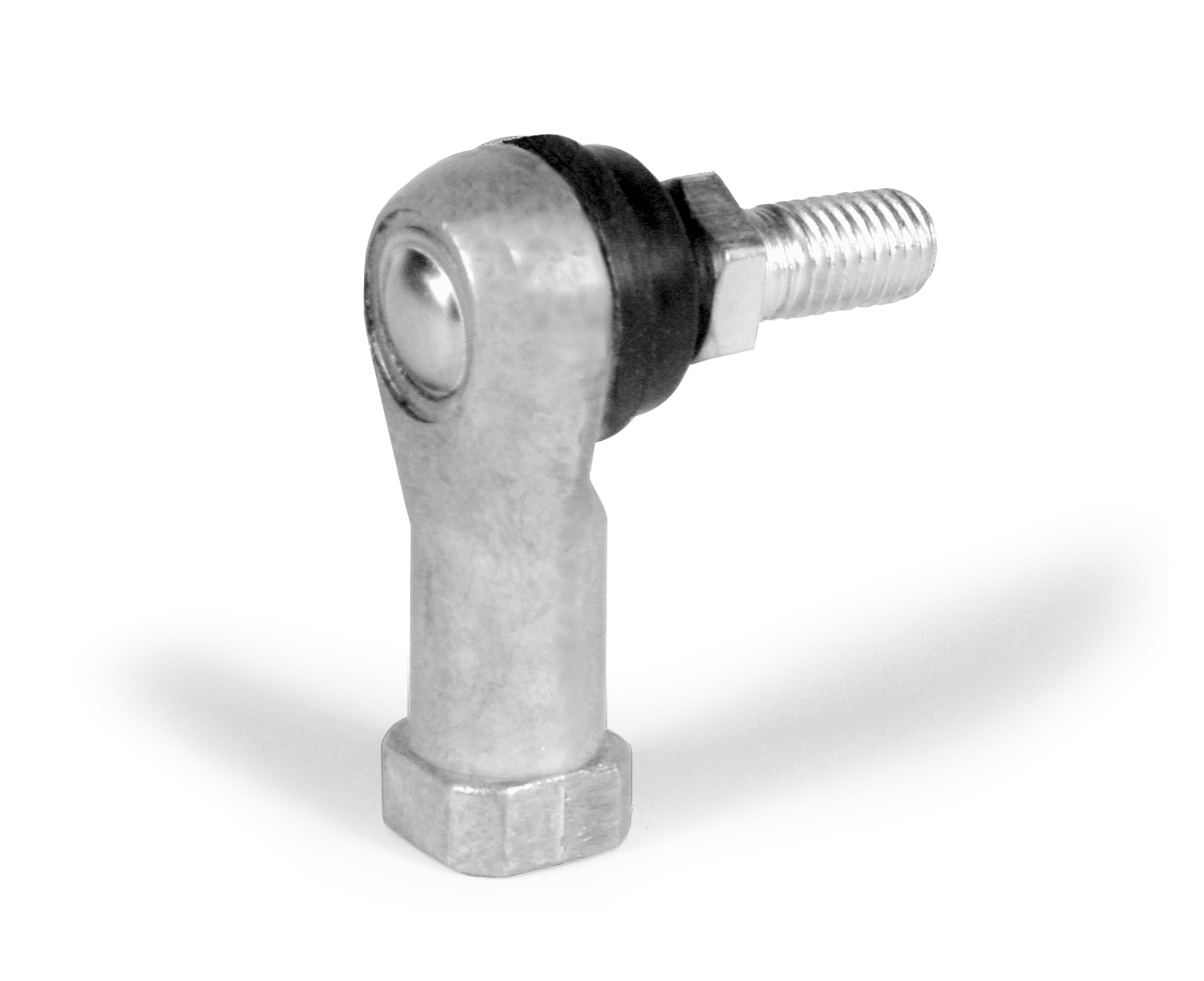

JSB375 — Ball Joints photo

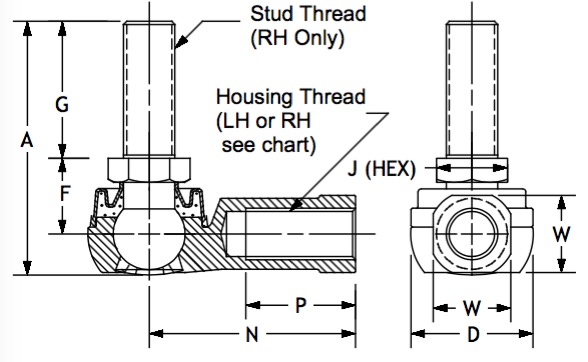

JSB375 dimensional drawing

JSB375

Ball Joints · Female

Female 3/8-24 RH Housing 3/8-24 RH Stud Sealed

Part numberJSB375
CategoryBall Joints
TypeFemale
Housing Threads3/8-24 RH
Stud Threads3/8-24 RH
A1.929
D0.984
F0.688
G0.875
J (Hex)0.500
N1.693
P0.906
W0.669
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Product overview

Construction: high strength zinc alloy, zinc plated ball stud, neoprene rubber boot. Bearing cavity filled with high wear lubricant. Application: our JSB ball joints are targeted toward applications where an ES-style or DMCS-style ball joint is not strong enough, and the cost of a spherical rod end is prohibitive.
