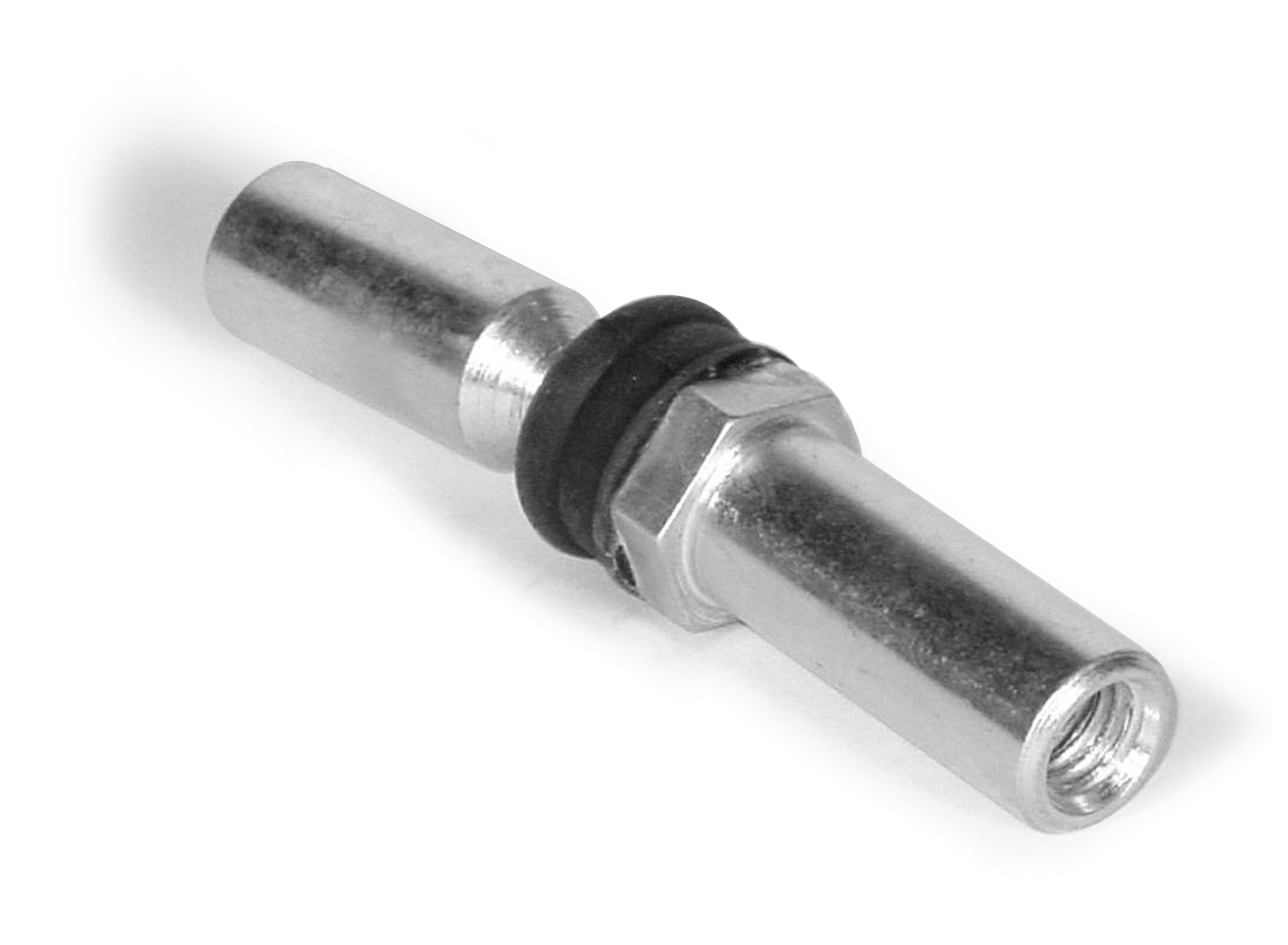

FF187
Ball Joints · Female
Female 10-32 RH Housing 10-32 RH Stud Inline

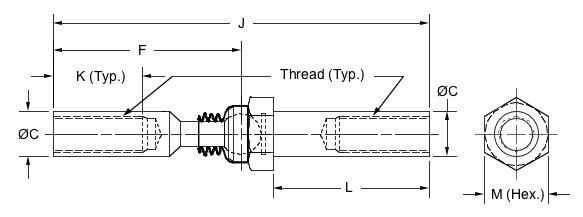

| Part number | FF187 |
| Category | Ball Joints |
| Type | Female |
| Threads | 10-32 RH |
| C | 0.312 |
| F | 1.045 |
| J | 2.090 |
| K | 0.500 |
| L | 0.833 |
| M | 0.437 |
Product overview
Application: FF-series Ball Joints are used in light-duty applications where the push/pull force in the linkage system is transferred generally along the centerline of the linkage itself. The ball stud provides some conical movement to allow for misalignment in the system.
Construction: zinc plated, low carbon steel.
Specials: Speical sizes and configurations are available in volume.
