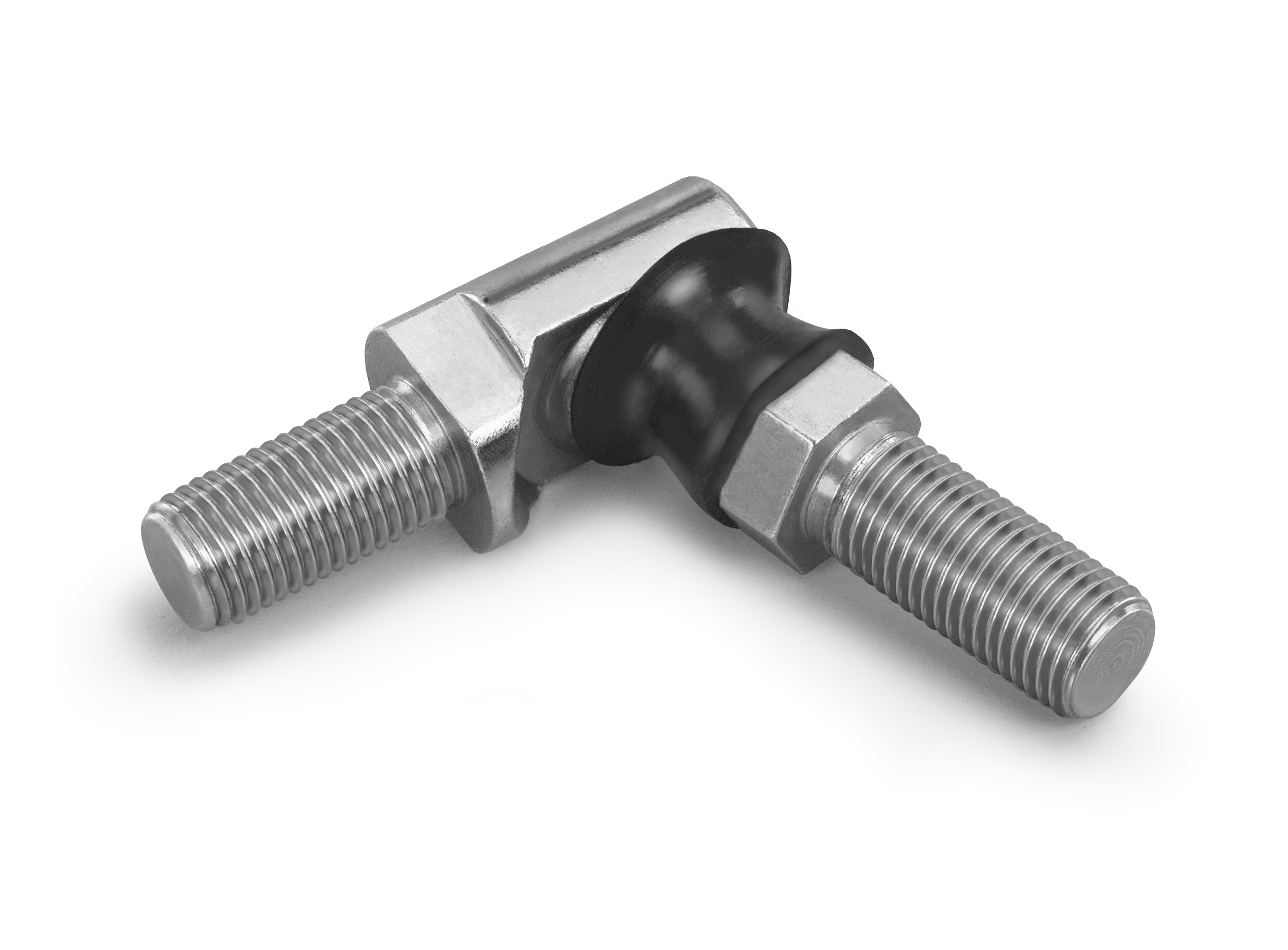

EMS375
Ball Joints · Male
Male 3/8-24 RH Housing 3/8-24 RH Stud
| Part number | EMS375 |
| Category | Ball Joints |
| Type | Male |
| Housing Threads | 3/8-24 RH |
| Stud Threads | 3/8-24 RH |

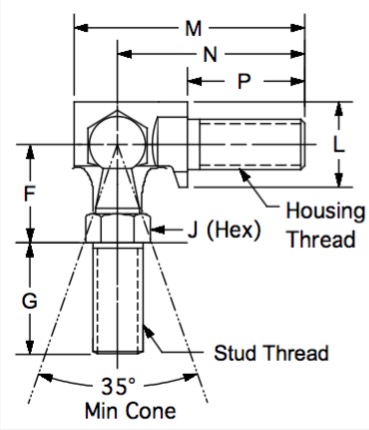

| E | 0.297 |
| F | 0.688 |
| G | 0.875 |
| J | 0.500 |
| L | 0.625 |
| M | 1.688 |
| N | 1.375 |
| P | 0.750 |
Product overview
Application: Ball Joints are typically assembled to the end of a rod, pipe, tube or cable linkage to provide misalignment between two moving points.
Construction: low carbon steel, plated and yellow dichromate treated for corrosion resistance. The Bearing cavity is filled with high wear lubricant.
Dust Shield: The EMS series are fitted with a rubber dust shield to protect the bearing cavity.
Specials: Special sizes and configurations are available in volume.
