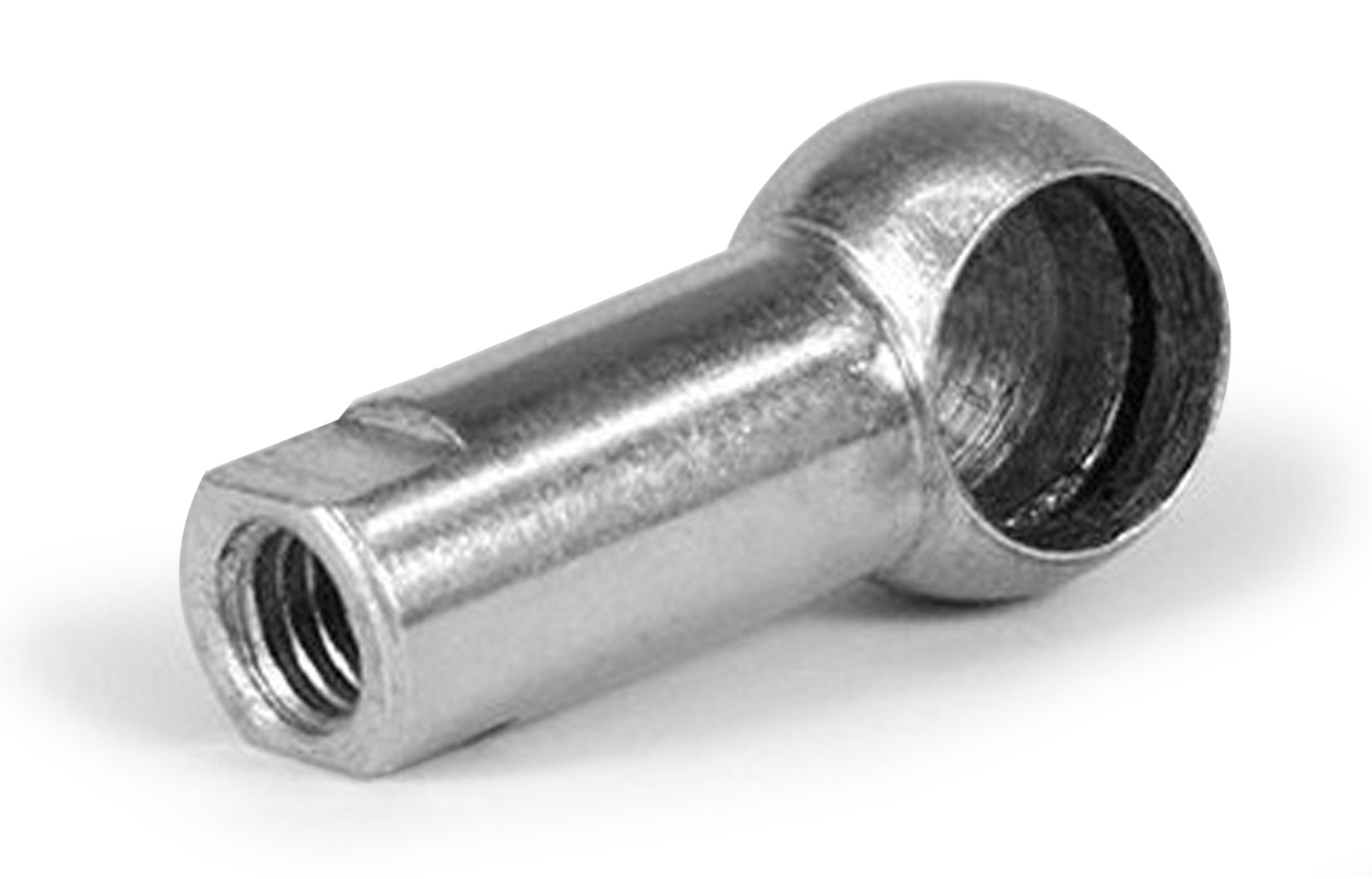

DMQBH-8 — Ball Joints photo

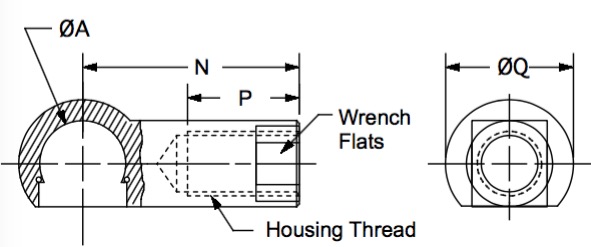

DMQBH-8 dimensional drawing

DMQBH-8

Ball Joints · Female

Female M8 x 1.25 RH Housing Stud Not Included Zinc Clear (Silver) Plating

Part numberDMQBH-8
CategoryBall Joints
TypeFemale
ThreadsM8 x 1.25 RH
A13.04
N30
P14
Q19.3
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Product overview

Application: DMQBH ball joints are used in light linkage applications where it is desired to have the ability to be able to remove the ball stud. The DMQBH ball joint is supplied LESS the ball stud and retaining clip. Construction: low carbon steel, per DIN 71802 Plating: zinc clear
