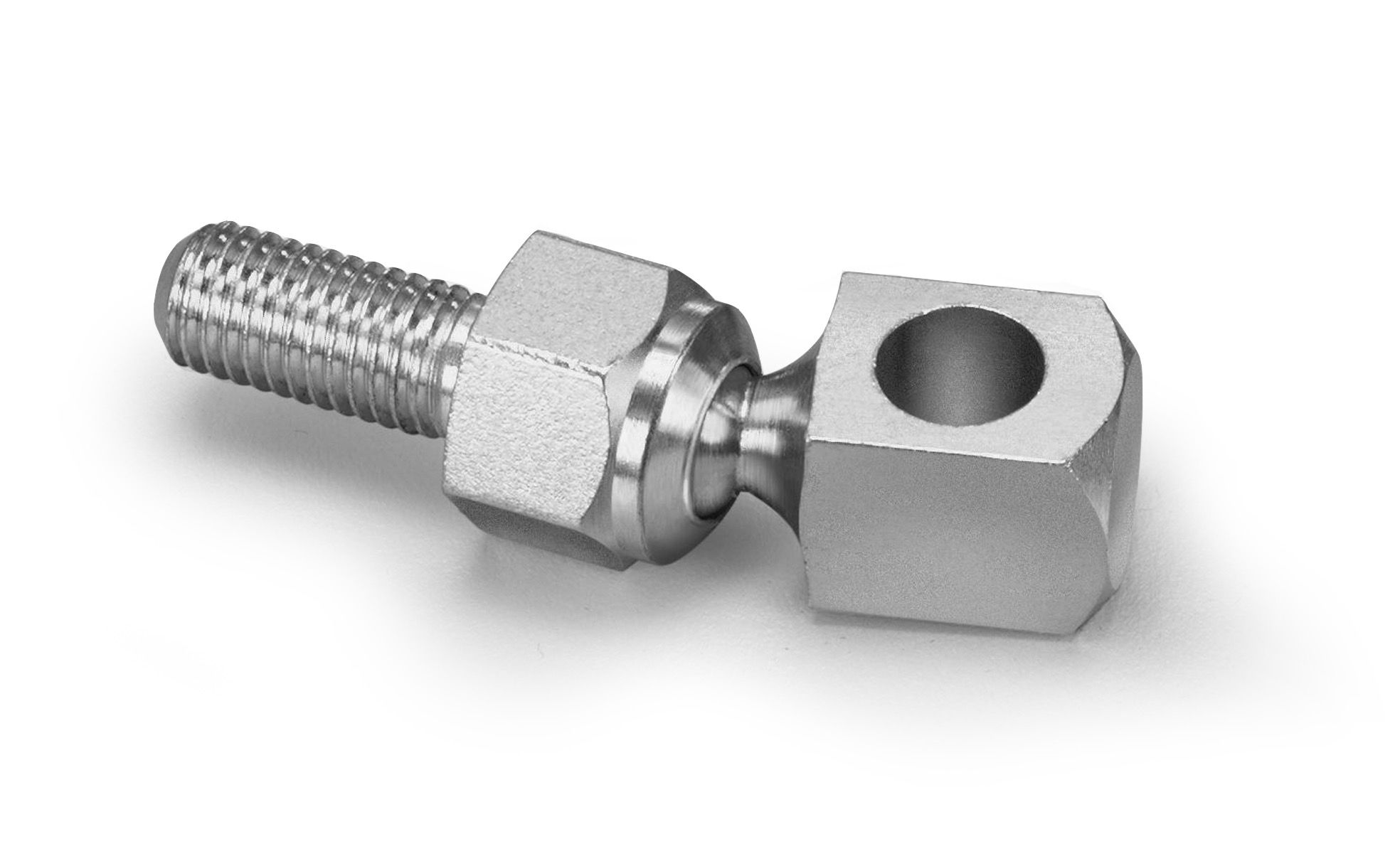

DH-4F-562-257 — Ball Joints photo

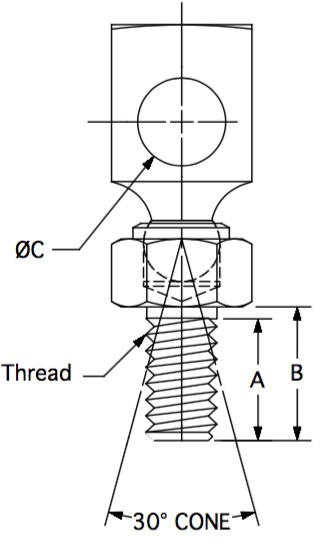

DH-4F-562-257 dimensional drawing

DH-4F-562-257

Ball Joints · Male

Male 1/4-28 RH Housing 1/4-28 RH Stud Damper Control No Set Screw

Part numberDH-4F-562-257
CategoryBall Joints
TypeMale
Threads1/4-28 RH
A0.500
B0.562
C0.257
PlatingZinc Yellow
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: DC-series Ball Joints act as a control swivel in a linkage system. The joint comes with a set screw for holding that can be used in conjuction with nuts if the connecting linkage is threaded. Construction: low carbon steel, plated zinc yellow. Per SAE J490 Style 1. Specials: Special sizes and configurations are available in volume.
