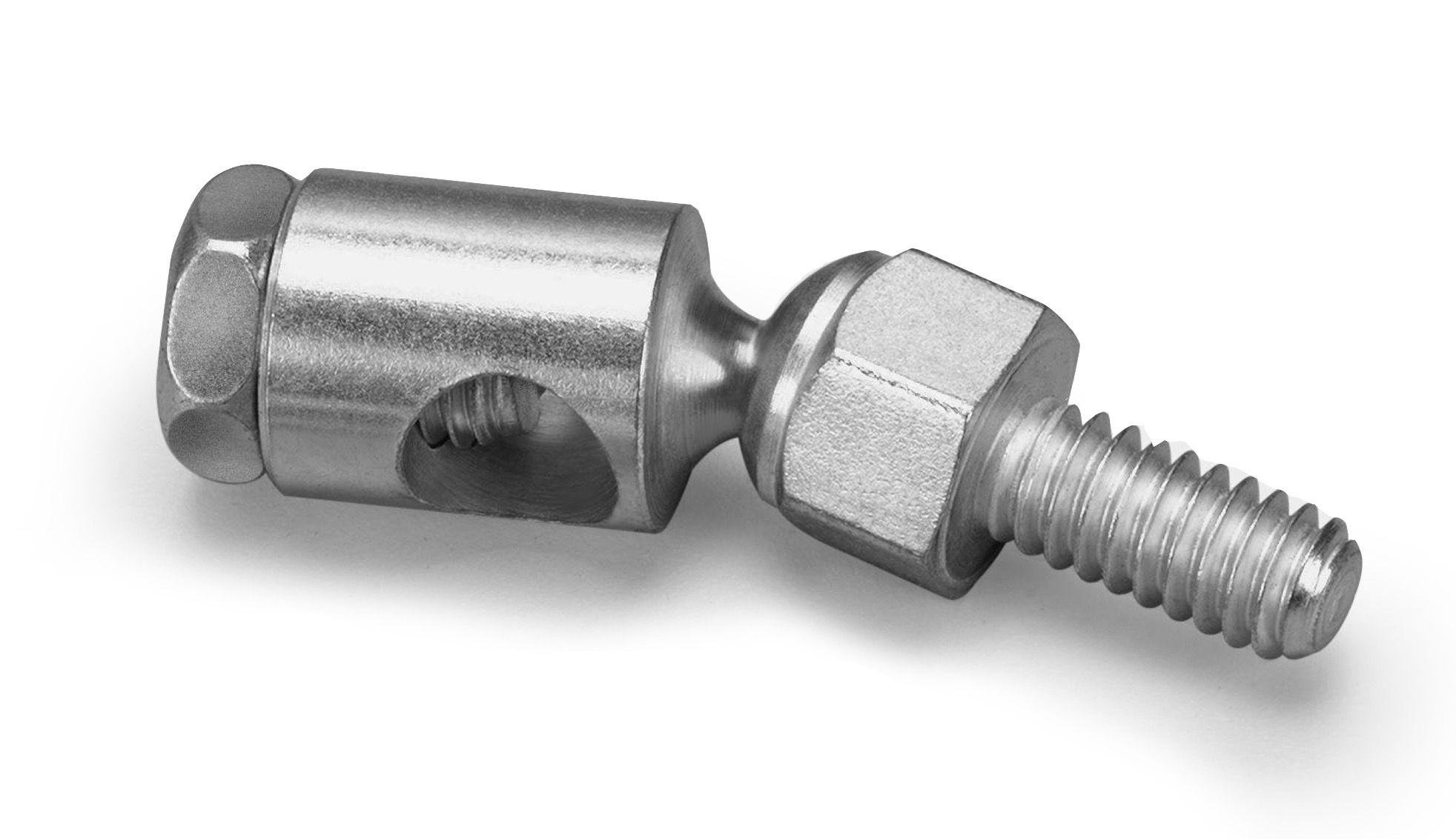

DC-3F-312-320 — Ball Joints photo

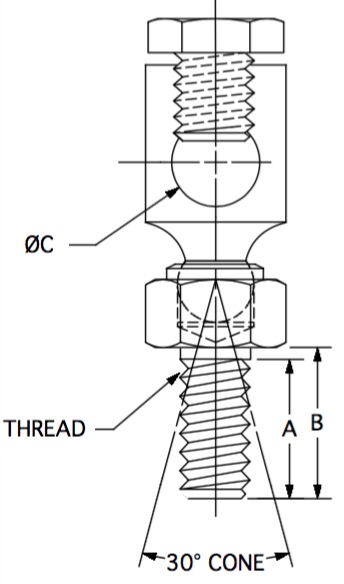

DC-3F-312-320 dimensional drawing

DC-3F-312-320

Ball Joints · Male

Male 10-32 RH Housing 10-32 RH Stud Damper Control Set Screw Style

Part numberDC-3F-312-320
CategoryBall Joints
TypeMale
Threads10-32 RH
A0.250
B0.312
C0.320
PlatingZinc Yellow
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: DC-series Ball Joints act as a control swivel in a linkage system. The joint comes with a set screw for holding that can be used in conjuction with nuts if the connecting linkage is threaded. Construction: low carbon steel, plated zinc yellow. Per SAE J490 Style 1. Specials: Special sizes and configurations are available in volume.
