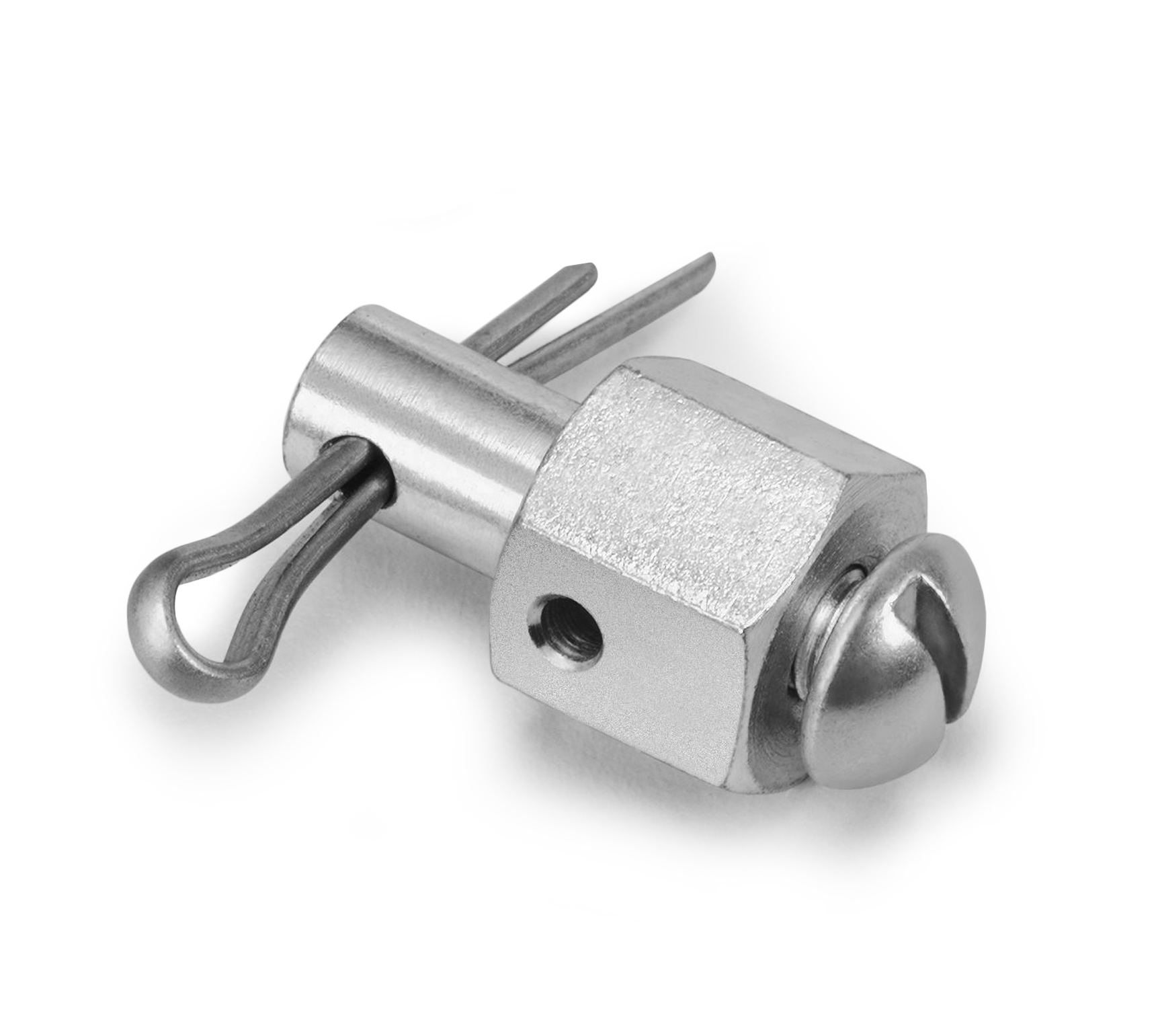

WS088-373-099-188FZC

Cable End Fittings, Special · 0.088 Wire Diameter

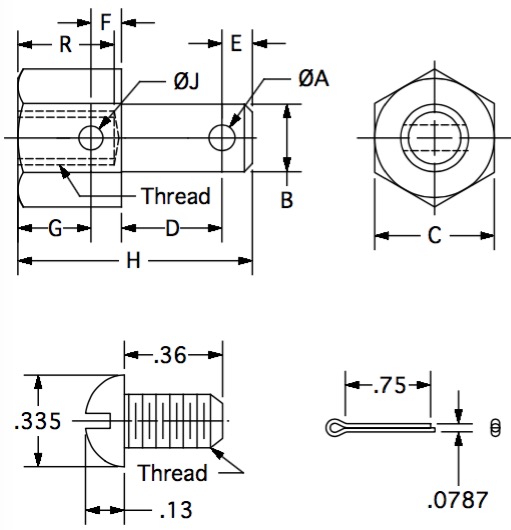

0.088 Wire Diameter 0.248 Pin Diameter 0.760 Overall Length Wire Stop Style

Part number	WS088-373-099-188FZC
Category	Cable End Fittings, Special
Type	0.088 Wire Diameter
Threads	M5 x 0.80 RH
A	0.095
B	0.248
C	0.438
D	0.261
E	0.114
F	0.112
G	0.273
H	0.760
J	0.088

⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Buy online →View in interactive catalog Request a quote

Product overview

Application: Wire Stops are typically attached to the end of a cable. Construction: machined from low carbon steel. Product includes the housing, screw and cotter. Plating: plated zinc with a clear chromate finish. Specials: special housing sizes and configurations are available in volume.
