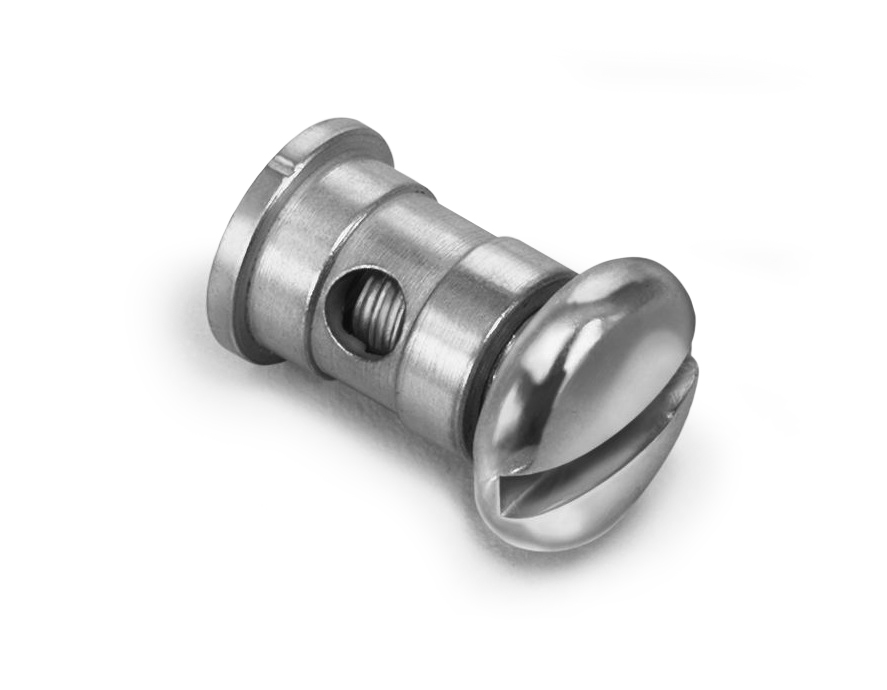

BWS-096 — Cable End Fittings, Special photo

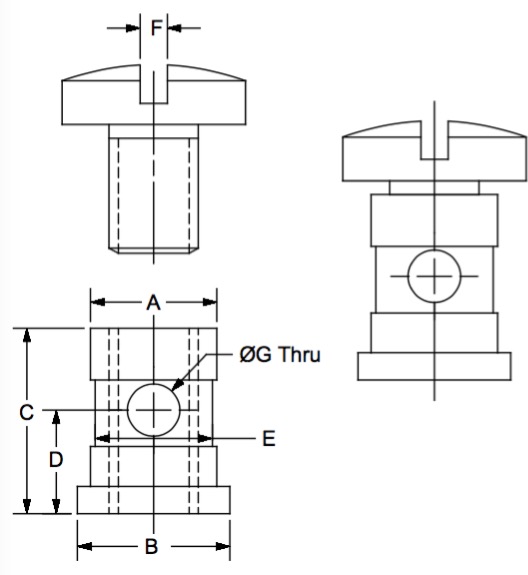

BWS-096 dimensional drawing

BWS-096

Cable End Fittings, Special · 0.096 Wire Diameter

0.096 Wire Diameter 0.280 Pin Diameter 0.34 Barrel Length Barrel Pivot Style

Part numberBWS-096
CategoryCable End Fittings, Special
Type0.096 Wire Diameter
A0.232
B0.28
C0.34
D0.19
E0.215
F0.05
G0.096
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: Wire Stops are typically attached to the end of a push pull cable. Construction: machined from low carbon steel. Product includes the housing, screw and cotter. Plating: plated zinc with a clear chromate finish.
