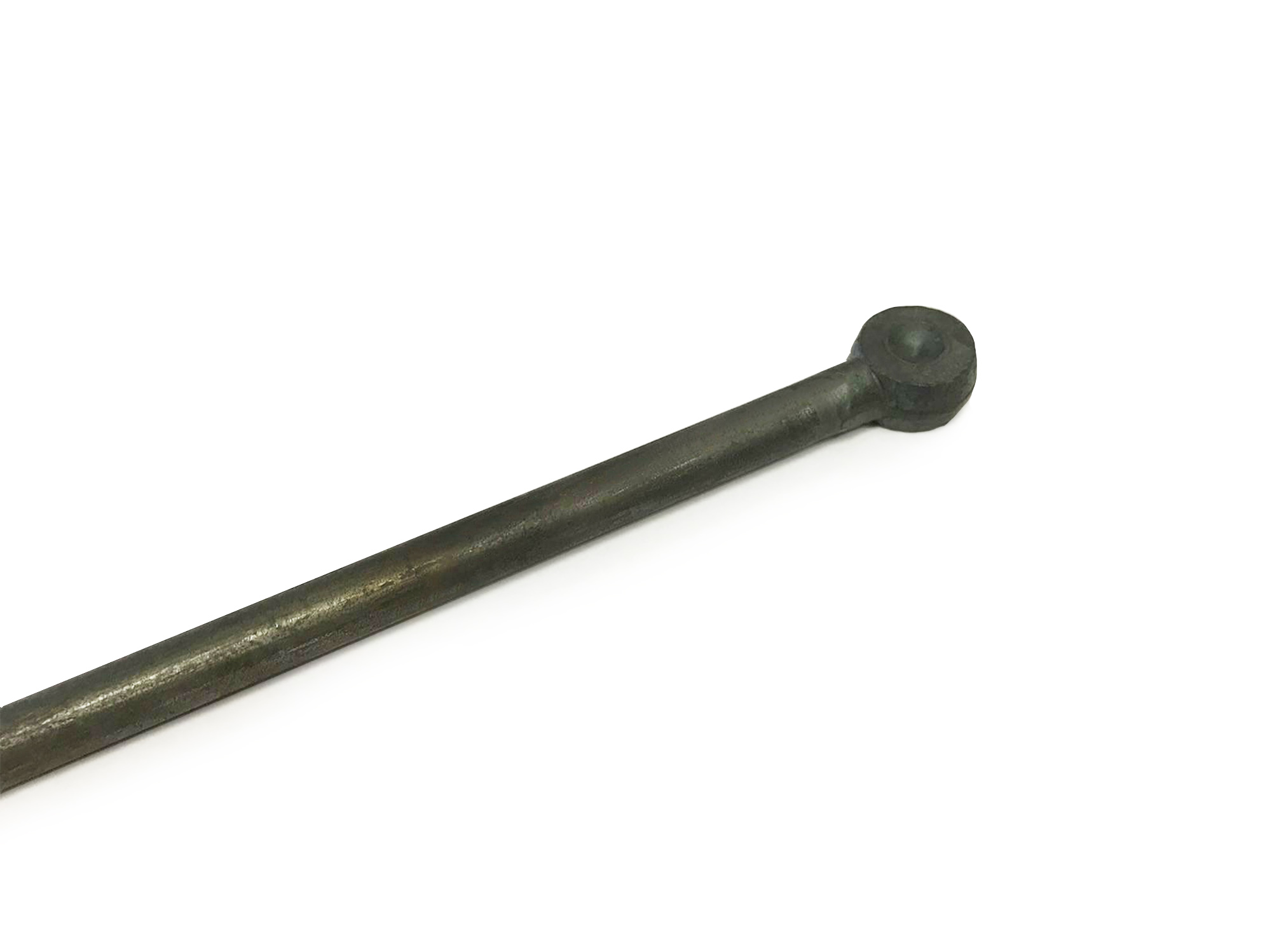

2823L
Eye Rod Ends · Male
Male 3/8 dia blank stem blank eye (not yet drilled) Forged Housing Construction
| Part number | 2823L |
| Category | Eye Rod Ends |
| Type | Male |
| Threads | 3/8 dia blank stem |
| Plating | Plain |

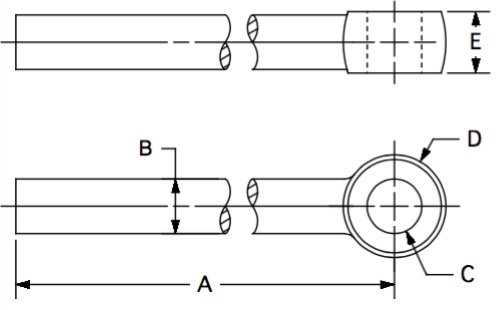

| A | 14.00 |
| B | 0.375 |
| C | Blank |
| D | 0.688 |
| E | 0.438 |
Product overview
Construction: This item is considered a 'raw blank forging'. We have forged the item, and have removed the forging scale, but have not machined holes or threads. It is suitable for welding and/or machining (drilling, threading, bending, etc).
Specials: Special housing sizes and configurations are available in volume. Different rod diameters can be welded or forged to the parent forging to achieve any length. If the housing dimensions D, E and G suit your application, the XX and XY dimensions can be any length up to 12'. The stem can be formed and machined to any configuration.
