MAE-8
Eye Rod Ends · Female
Female 1/2-20 RH with 0.500 Pin Hole Forged Housing Construction
| Part number | MAE-8 |
| Category | Eye Rod Ends |
| Type | Female |
| Threads | 1/2-20 RH |
| Plating | Zinc Yellow |

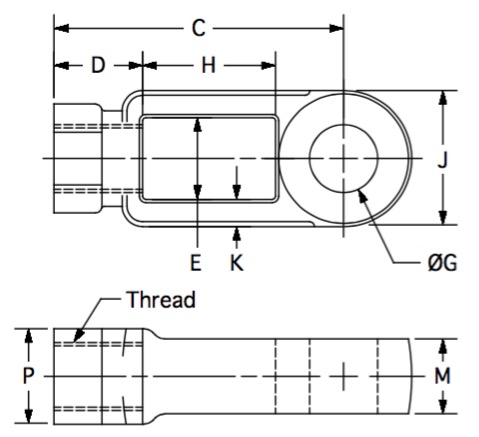

| C | 2.125 |
| D | 0.688 |
| E | 0.624 |
| G | 0.500 |
| H | 0.937 |
| J | 1.000 |
| K | 0.188 |
| M | 0.563 |
Product overview
Application: Adjustable Eye Ends are used to create a mounting point in a linkage system.
Construction: Adjustable Eye Ends are forged or cast from low carbon steel, and are then machined to the above specifications.
Plating: Adjustable Eye Ends are plated zinc with a yellow dichromate finish.
Specials: Special housing sizes and configurations are available in volume.
Thread and Clevis Pin Sizes: left hand threads, metric threads, smaller thread sizes (ie: 1/4-28" in the MAE-6 housing), and special clevis pin hole ("G" dimension) sizes are available in volume.
