WTFS-20R-1.495
Tube Thread Bungs · Female
Female 1.25-12 RH Bull Nose Style

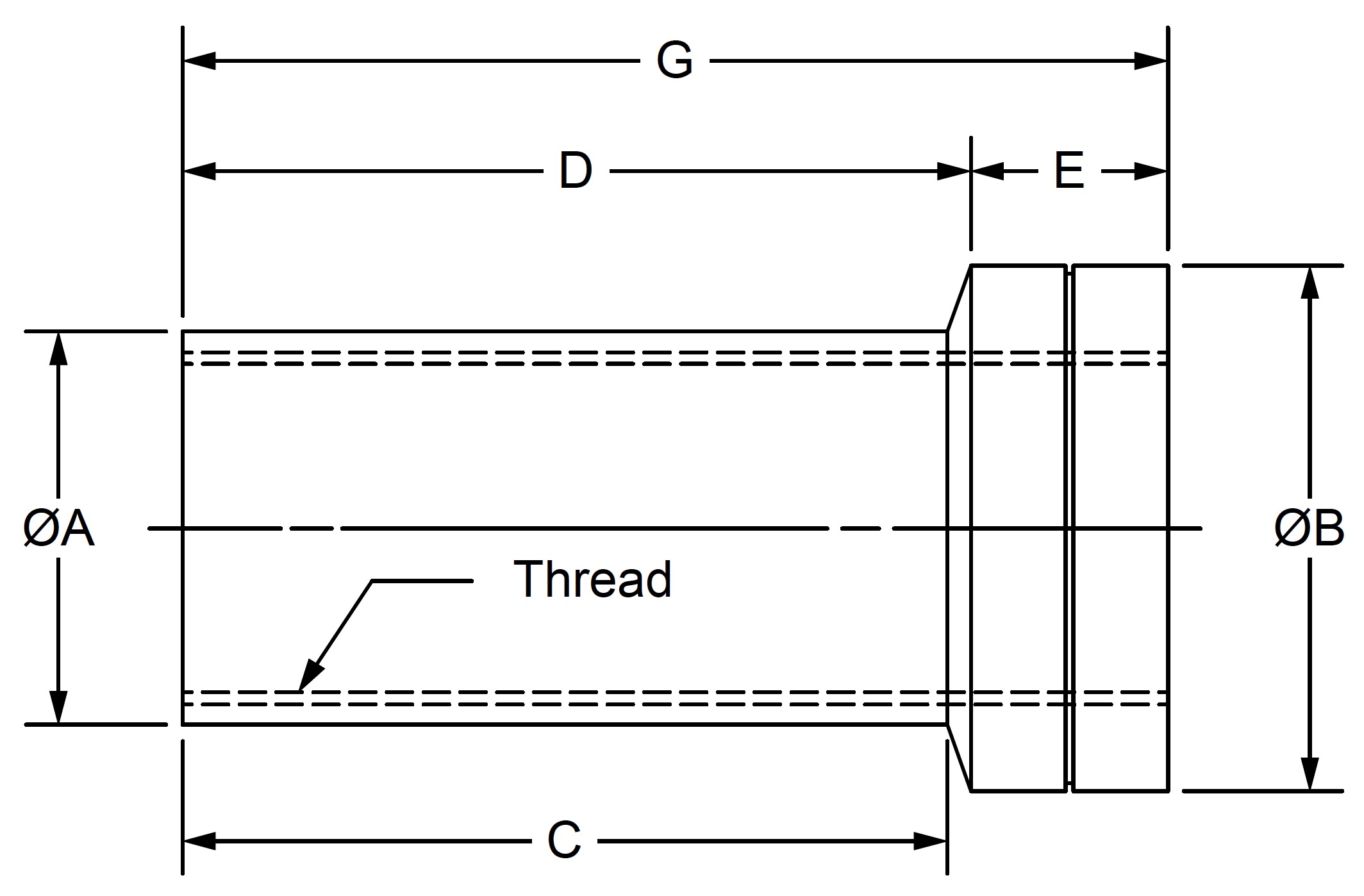

| Part number | WTFS-20R-1.495 |
| Category | Tube Thread Bungs |
| Type | Female |
| Threads | 1.25-12 RH |
| A | 1.495 |
| B | 1.750 |
| C | 2.910 |
| D | 3.000 |
| E | 0.750 |
| G | 3.750 |

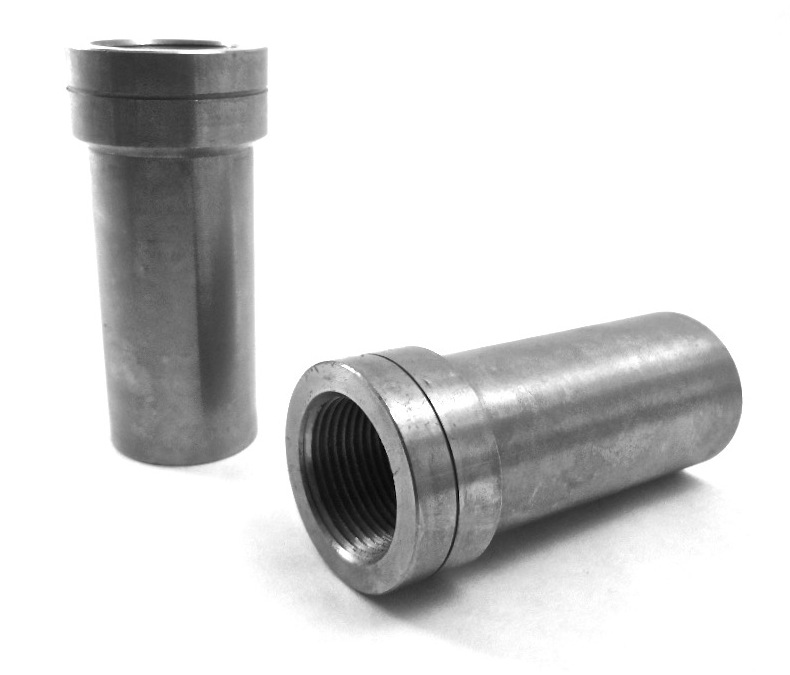

Product overview
Material: chrome moly
Application: our thread bungs are typically welded into the end of a pipe or tubing. Parts are to only be welded by certified welders - not suitable for all applications.
CAUTION: use weld-in threads with caution! Only certified welders should weld our WTFS components. Amperage, voltage, wire feed, inductance settings, fillet size, etc. - all influence weld penetration and safety. Selection of the correct tube size, and suitability of a thread size for an application is the customer’s sole responsibility. Use at your own risk.
