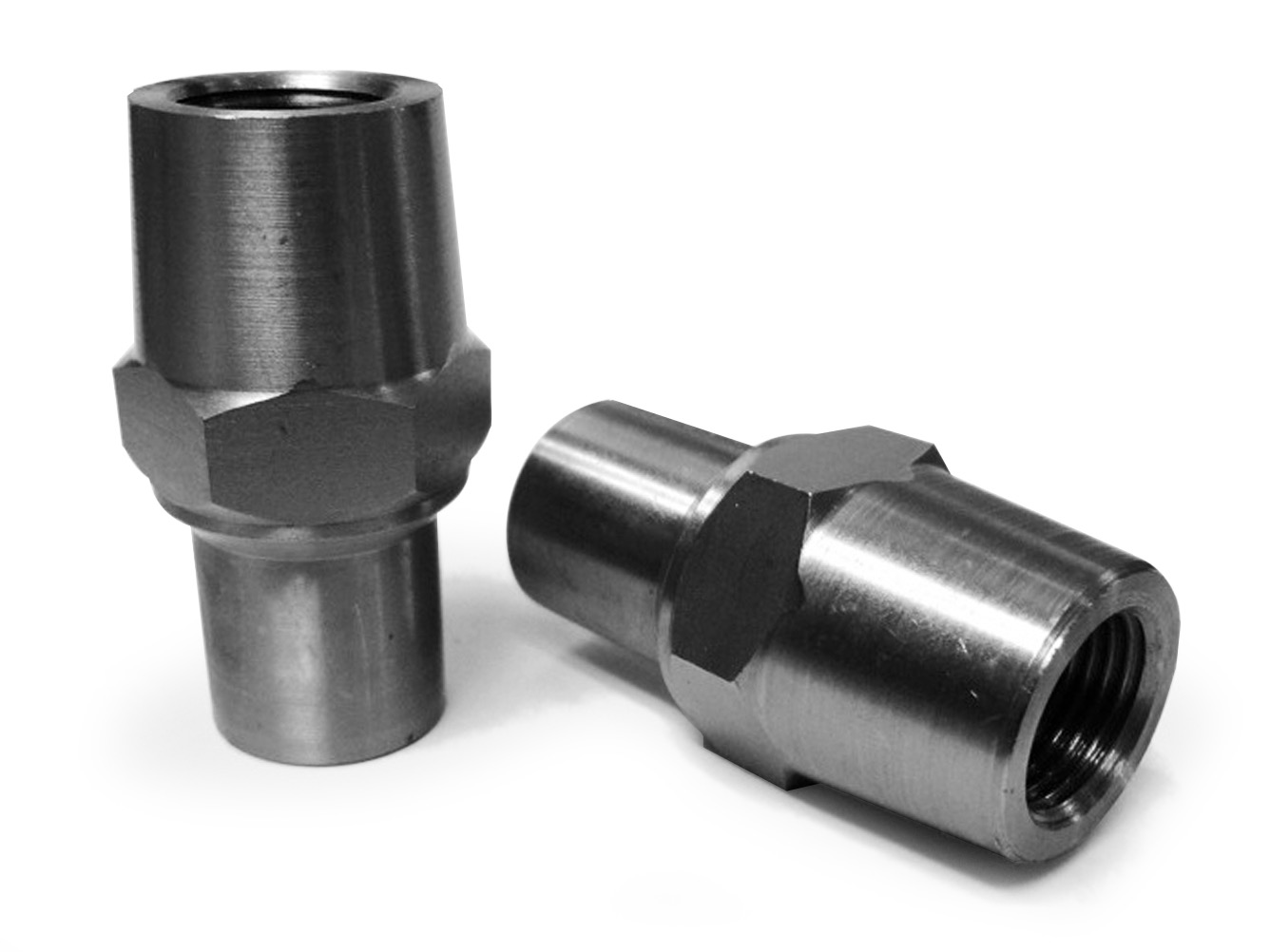

WTFH-10R-0.995
Tube Thread Bungs · Female
Female 5/8-18 RH Hex Barrel Style
| Part number | WTFH-10R-0.995 |
| Category | Tube Thread Bungs |
| Type | Female |
| Thread | 5/8-18 RH |

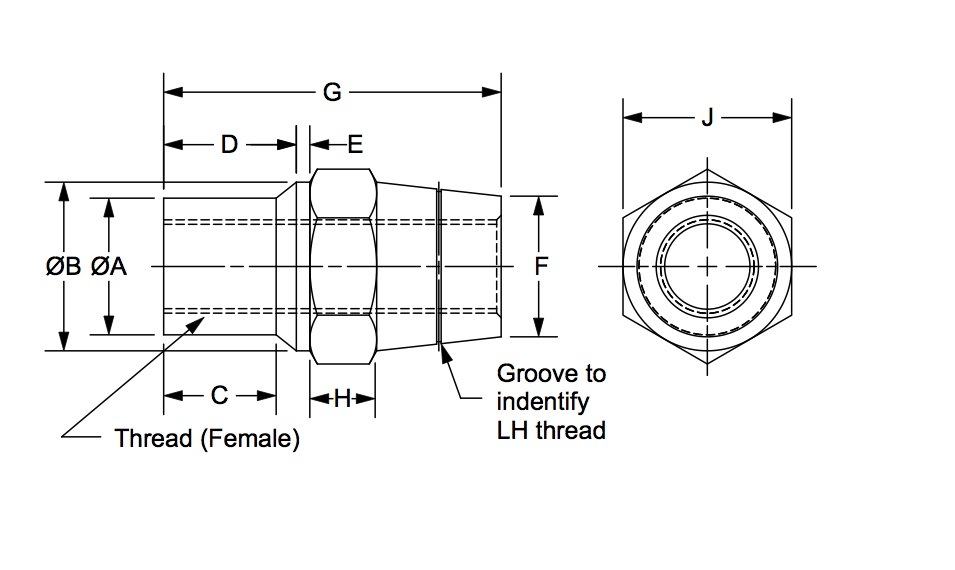

| A | 0.995 |
| B | 1.250 |
| C | 0.750 |
| D | 0.840 |
| E | 0.06 |
| F | 0.875 |
| G | 2.000 |
| J | 0.375 |
| H | 1.312 |
Product overview
Material: chrome moly
Feature: built in hex shaped wrench flat
Application: our thread bungs are typically welded into the end of a pipe or tubing. Parts are to only be welded by certified welders - not suitable for all applications.
CAUTION: use weld-in threads with caution! Only certified welders should weld our WTFH components. Amperage, voltage, wire feed, inductance settings, fillet size, etc. - all influence weld penetration and safety. Selection of the correct tube size, and suitability of a thread size for an application is the customer’s sole responsibility. Use at your own risk.
