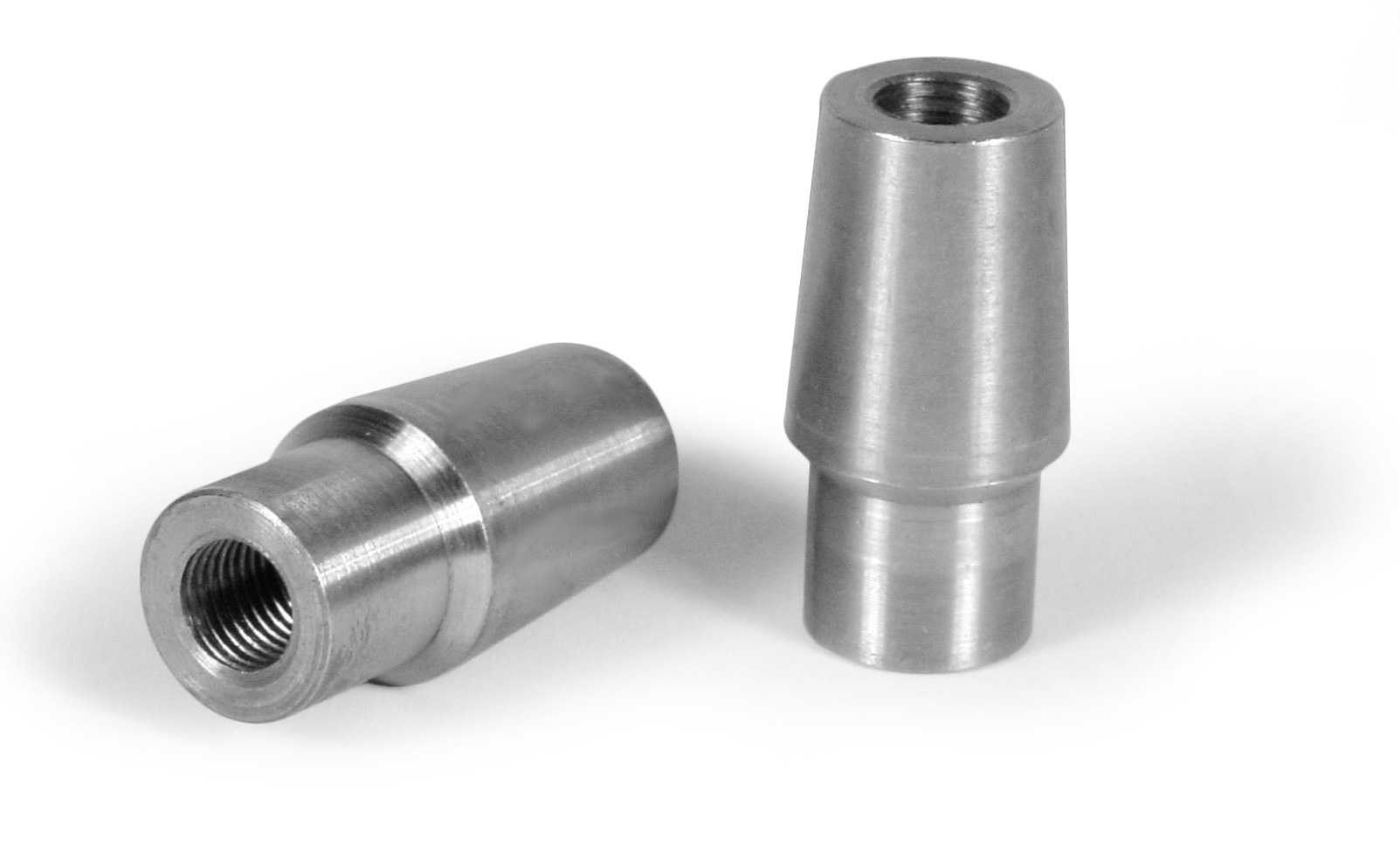

WTF-10R-0.795
Tube Thread Bungs · Female
Female 5/8-18 RH Round Barrel Style
| Part number | WTF-10R-0.795 |
| Category | Tube Thread Bungs |
| Type | Female |
| Threads | 5/8-18 RH |

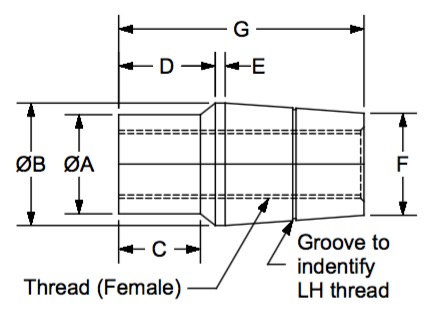

| A | 0.795 |
| B | 1.000 |
| C | 1.0000 |
| D | 0.8400 |
| E | 0.060 |
| F | 0.8750 |
| G | 2.000 |
| Tube OD | 1.0000 |
| Fits Tube Wall | 0.0950 |
Product overview
Material: chrome moly
Application: our thread bungs are typically welded into the end of a pipe or tubing. Parts are to only be welded by certified welders - not suitable for all applications.
CAUTION: use weld-in threads with caution! Only certified welders should weld our WTF components. Amperage, voltage, wire feed, inductance settings, fillet size, etc. - all influence weld penetration and safety. Selection of the correct tube size, and suitability of a thread size for an application is the customer’s sole responsibility. Use at your own risk.
