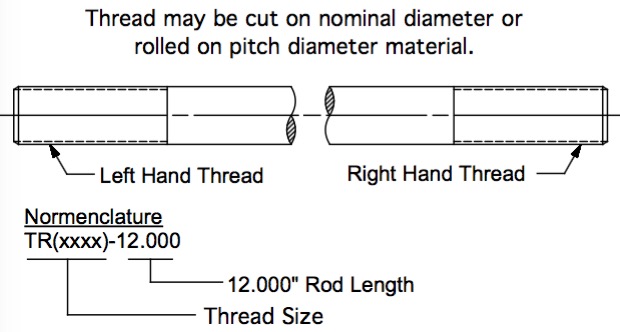

TR12-150 dimensional drawing

TR12-150

Rods, Threaded · M12 x 1.75 LH/RH

M12 x 1.75 LH/RH 150 mm Long Plated Steel with 70 mm of thread length on each end

Part numberTR12-150
CategoryRods, Threaded
TypeM12 x 1.75 LH/RH
ThreadsM12 x 1.75 LH/RH
Thread Length70
Part Length150
Overall Length if Assembled DIN to Ball Joints189 to 196
Overall Length if Assembled to DIN Sphcl Rod Ends206 to 226
Overall Length if Assembled to DIN Short Clevises186 to 222
Overall Length if Assembled to DIN Long Clevises186 to 270
MaterialPlated Steel
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Finish: plated zinc with a yellow dichromate treatment. Length Determination: the dimensions above show what center-to-center length can be achieved by the rod length shown for the various of linkage end options (ie: ball joints, clevises/yoke ends, spherical rod ends). Material: low carbon steel. Specials: specials are available at any volume. Standards: MCP offers standard threaded rod lengths to provide fast and economical linkage options.
