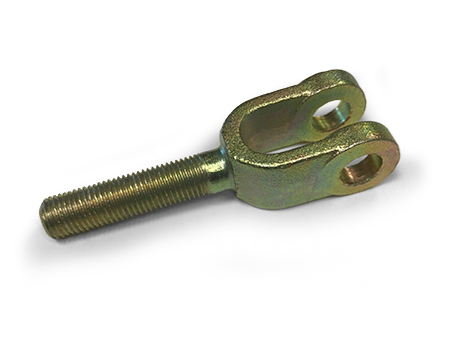

TMY-10-ZCHF
Clevis and Yoke Ends · Male
Male 5/8-18 RH 0.625 Pin Holes Zinc Clear Hex Free Plating
| Part number | TMY-10-ZCHF |
| Category | Clevis and Yoke Ends |
| Type | Male |
| Threads | 5/8-18 RH |
| XY | 6.000 |
| XX | 2.50 |
| A | na |
| B | 0.625 |
| D | 1.438 |
| E | 0.688 |
| F | 1.375 |
| G | 0.625 |
| I | 1.188 |
Product overview
Construction: Male Yoke Ends are forged from low carbon steel, and are then machined to the above specifications. Standard designs are plated zinc clear hex free.
Specials: Special housing sizes and configurations are available in any volume. Different rod diameters and lengths can be welded to the parent forging to achieve any length. Pin hole sizes can be modified easily and cost effectively. Note: avoid changing the following dimensions: D, E, F and I.
