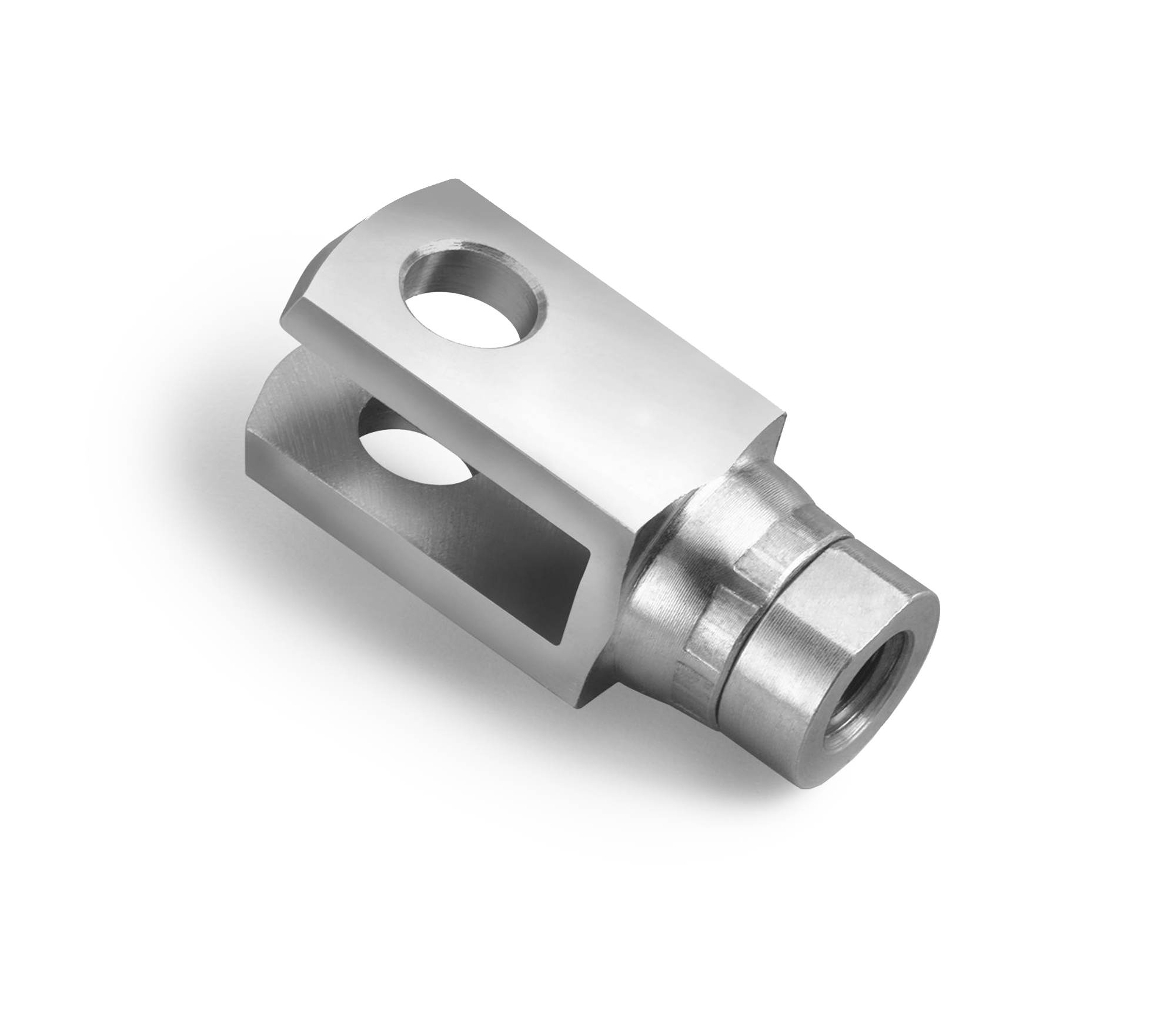

TC187
Clevis and Yoke Ends · Female
Female 10-32 RH 0.188 Pin Holes Patented Barrel eliminates need for LH Threads
| Part number | TC187 |
| Category | Clevis and Yoke Ends |
| Type | Female |
| Threads | 10-32 RH |

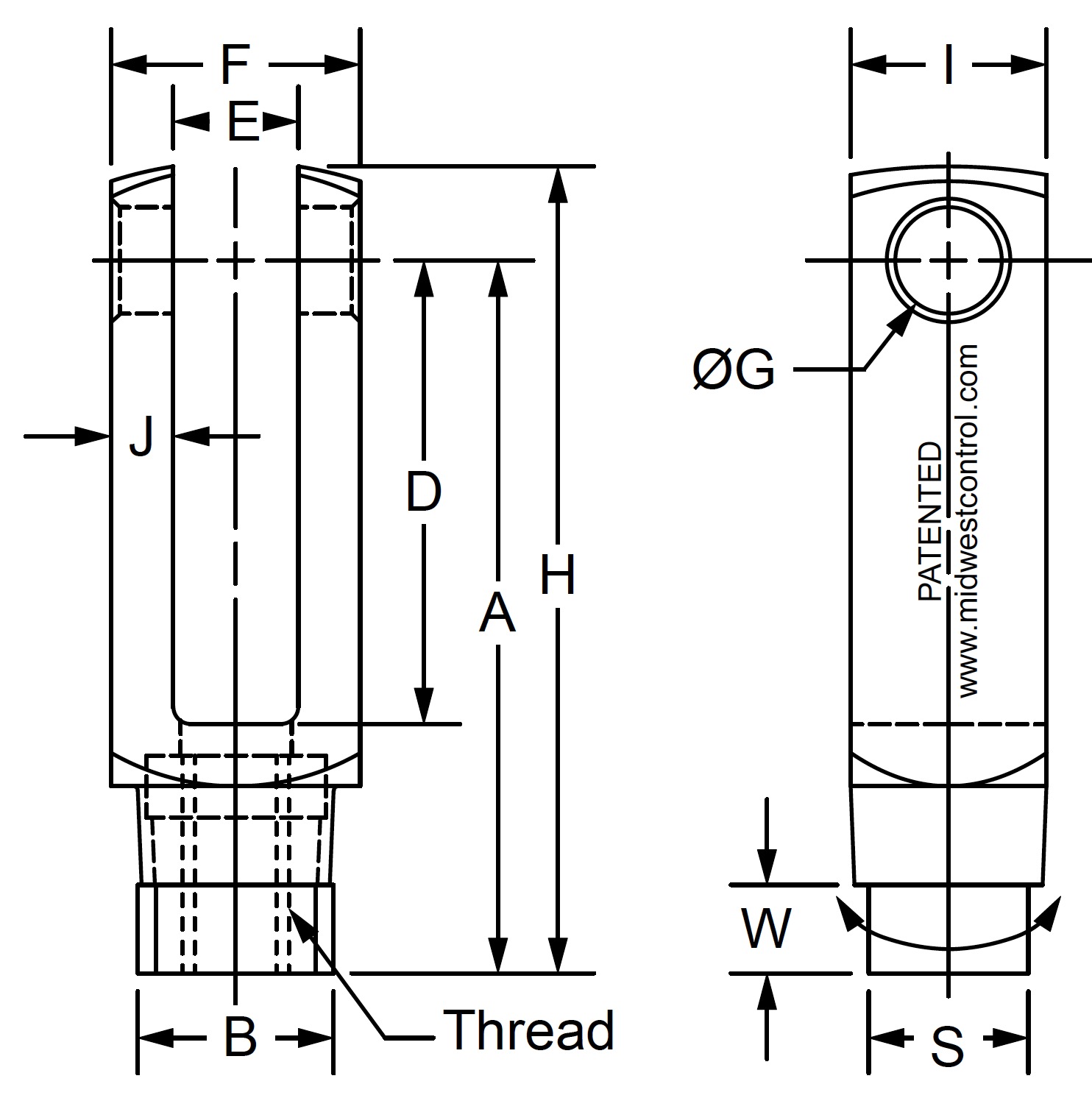

| A | 1.563 |
| B | 0.3750 |
| D | 1.000 |
| E | 0.188 |
| F | 0.438 |
| G | 0.188 |
| H | 1.77 |
| I | 0.375 |
| J | 0.094 |
Product overview
Patented Design: Our Turnbuckle Clevis features a special PATENTED TURNBUCKLE feature that allows the yoke assembly to be adjusted after installation without disconnecting the entire linkage assembly, and eliminates the need for left hand threads. Typical applications include linkage rods and/or push-pull cable linkages where it's advantageous to be able to micro adjust the overall length of the linkage assembly WITHOUT having to remove the clevis pin or clevis spring pin to do so. In other words, using a turnbuckle clevis in your rod or push-pull cable linkage assembly makes after installation adjustment much easier.
Material: Low carbon steel.
Plating: Zinc Yellow Dichromate finish
Video: https://www.youtube.com/watch?v=U793tfUOUOs
