TBM-08R-10-2.00-ZC
Rod Ends, Isolated · Male

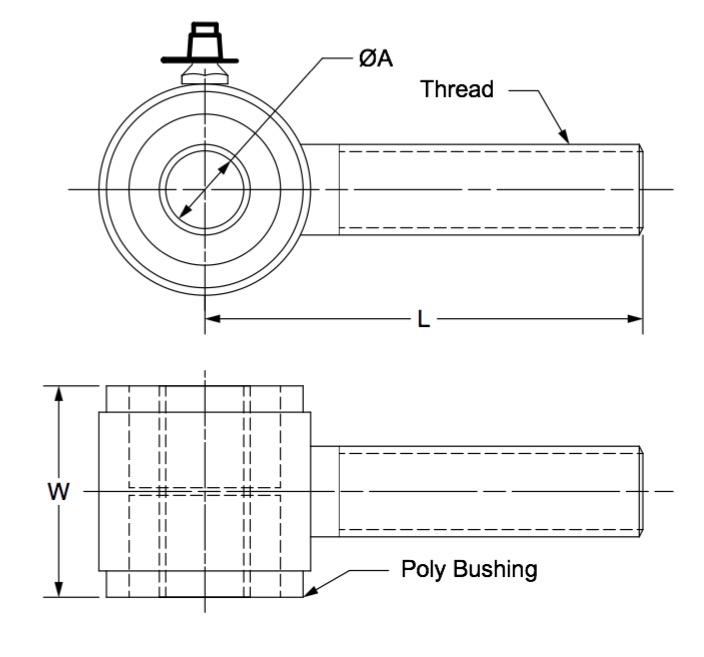

Male 1/2-20 RH 0.625 Bore 2.00 Width 3.875 Length
| Part number | TBM-08R-10-2.00-ZC |
| Category | Rod Ends, Isolated |
| Type | Male |
| Threads | 1/2-20 RH |
| A | 0.625 |
| L | 3.875 |
| W | 2.00 |
Product overview
Tubular Housing: DOM Seamless ASTM 513 Type 5 Housing. Painted Black finish.
Polyurethane Bushings: Two Black polyurethane bushing halves per kit.
Metal Insert/Sleeve: Each part includes (1) DOM tubular sleeve (or insert), plated zinc clear (silver), (1) grease zerk, (1) grease zerk cap, and (1) zinc plated grade 2 jam nut.
Finish: the grease zerk, tubular bushing and jam nut are all zinc plated. The Bushing Housing is powder painted black. The Housing stud is zinc plated.
