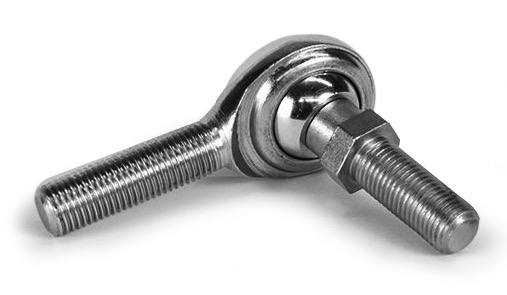

STM-8S
Bearings, Spherical Rod End · Male
Male 1/2-20 RH Stainless Housing, PTFE Race 0.501 Bore with Integral Ball Stud
| Part number | STM-8S |
| Category | Bearings, Spherical Rod End |
| Type | Male |
| Threads | 1/2-20 RH |
| Stud Included | Yes |
| Material | Stainless |

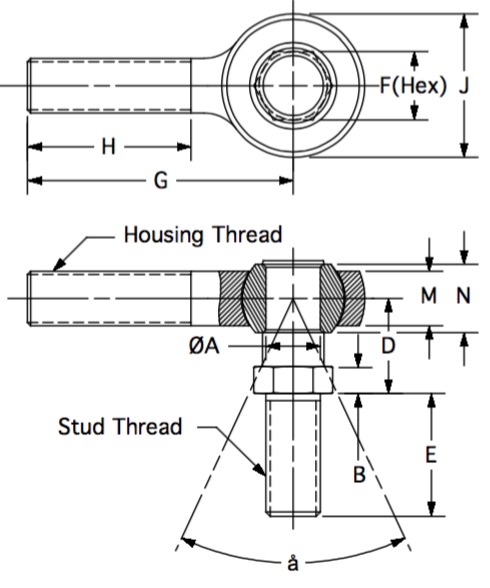

| A | 0.501 |
| B | 0.250 |
| D | 0.875 |
| E | 1.125 |
| F | 0.625 |
| G | 2.438 |
| H | 1.500 |
Product overview
Application: STM-series spherical rod ends may be purchased as individual components, or as part of a linkage assembly (ie: with the connecting rod or tubular linkage).
Ball: 440C stainless steel, surface hardened for wear resistance.
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Housing: 300-series stainless steel.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., STML-6).
Race: the STM-series features a PTFE bearing race.
