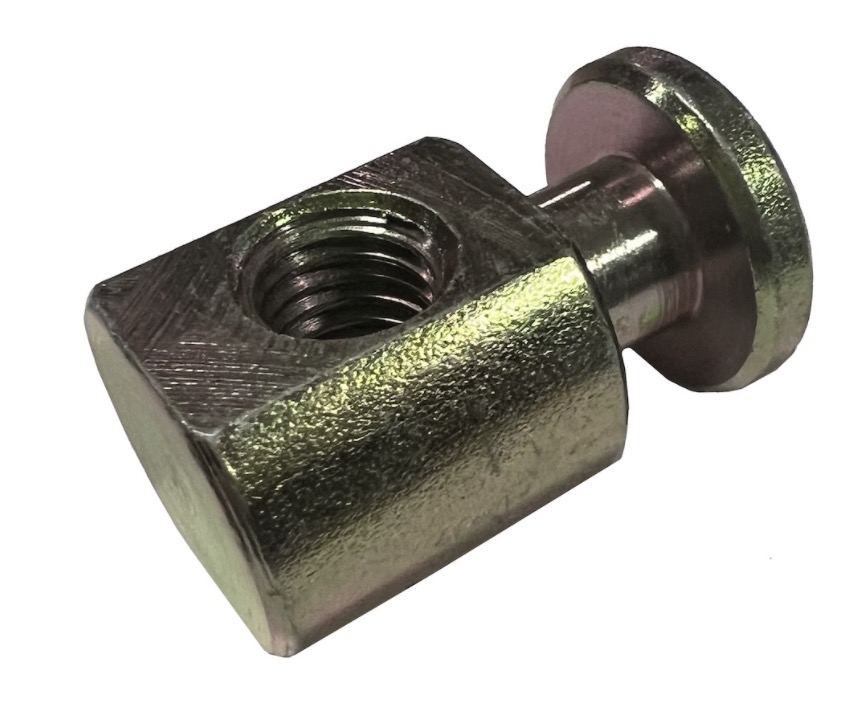

S394F-1
Swivels · M10 x 1.50 RH

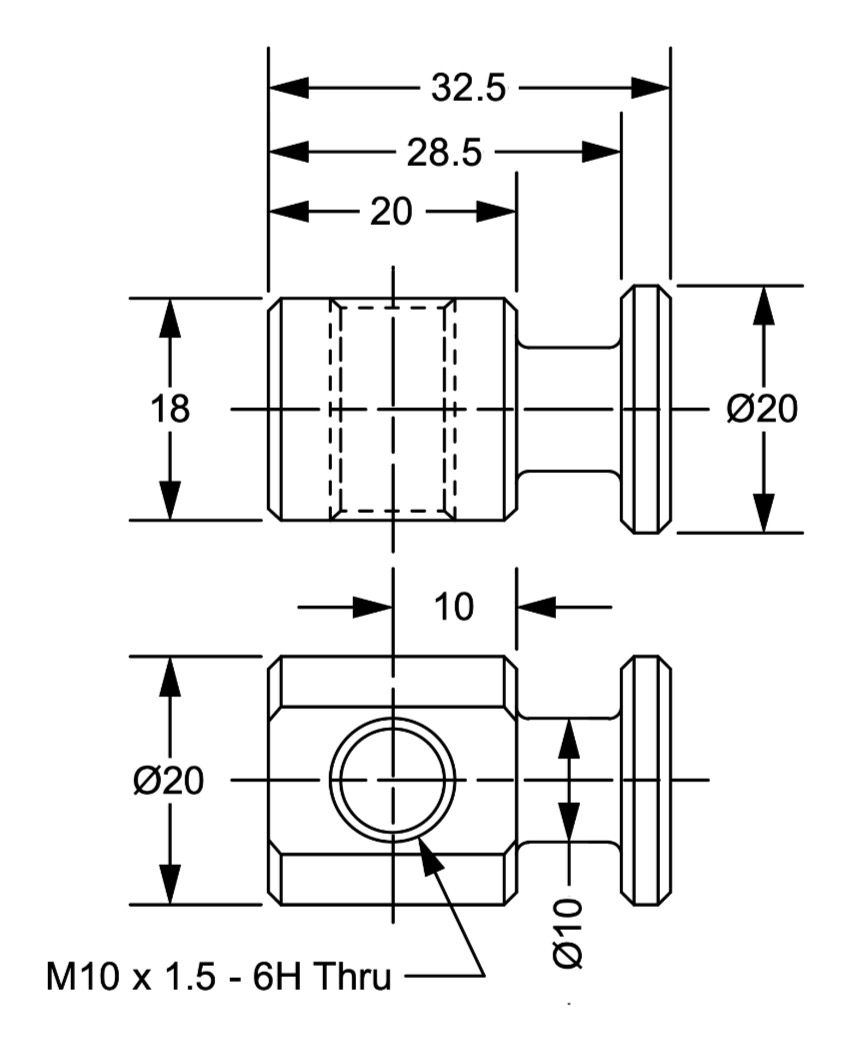

M10 x 1.50 RH 10mm Stem Diameter 32.5mm Overall Length
| Part number | S394F-1 |
| Category | Swivels |
| Type | M10 x 1.50 RH |
| Threads | M10 x 1.50 RH |
| Plating | Zinc Yellow |
Product overview
Application: Swivels are used as mounting points on the ends of threaded rods, tubes and push-pull cables. A swivel replaces the traditional yoke and clevis pin construction. Common applications include light duty shifter control linkages, lawn tractor mower deck linkages, and push-pull cable eyelet swivel pivots. Sometimes referred to as 'Brake Link Anchors' on walk-behind commercial lawn mowers.
Construction: low carbon steel, plated and dichromate treated for corrosion resistance
