S250F507-076 ZY
Swivels · 1/4-28 RH
1/4-28 RH 0.247 Stem Diameter 0.852 Overall Length
| Part number | S250F507-076 ZY |
| Category | Swivels |
| Type | 1/4-28 RH |
| Threads | 1/4-28 RH |
| Plating | Zinc Yellow |

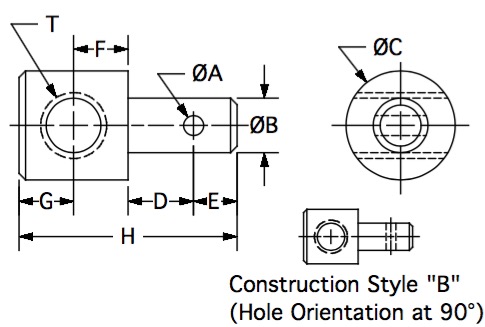

| Construction | A |
| A | 0.076 |
| B | 0.247 |
| C | 0.500 |
| D | 0.171 |
| E | 0.100 |
| J | 0.3360 |
| G | 0.2450 |
Product overview
Application: Swivels are used as mounting points on the ends of threaded rods, tubes and push-pull cables. A swivel replaces the traditional yoke and clevis pin construction. Common applications include light duty shifter control linkages, lawn tractor mower deck linkages, and push-pull cable eyelet swivel pivots. Sometimes referred to as 'Brake Link Anchors' on walk-behind commercial lawn mowers.
Construction: low carbon steel, plated and dichromate treated for corrosion resistance
