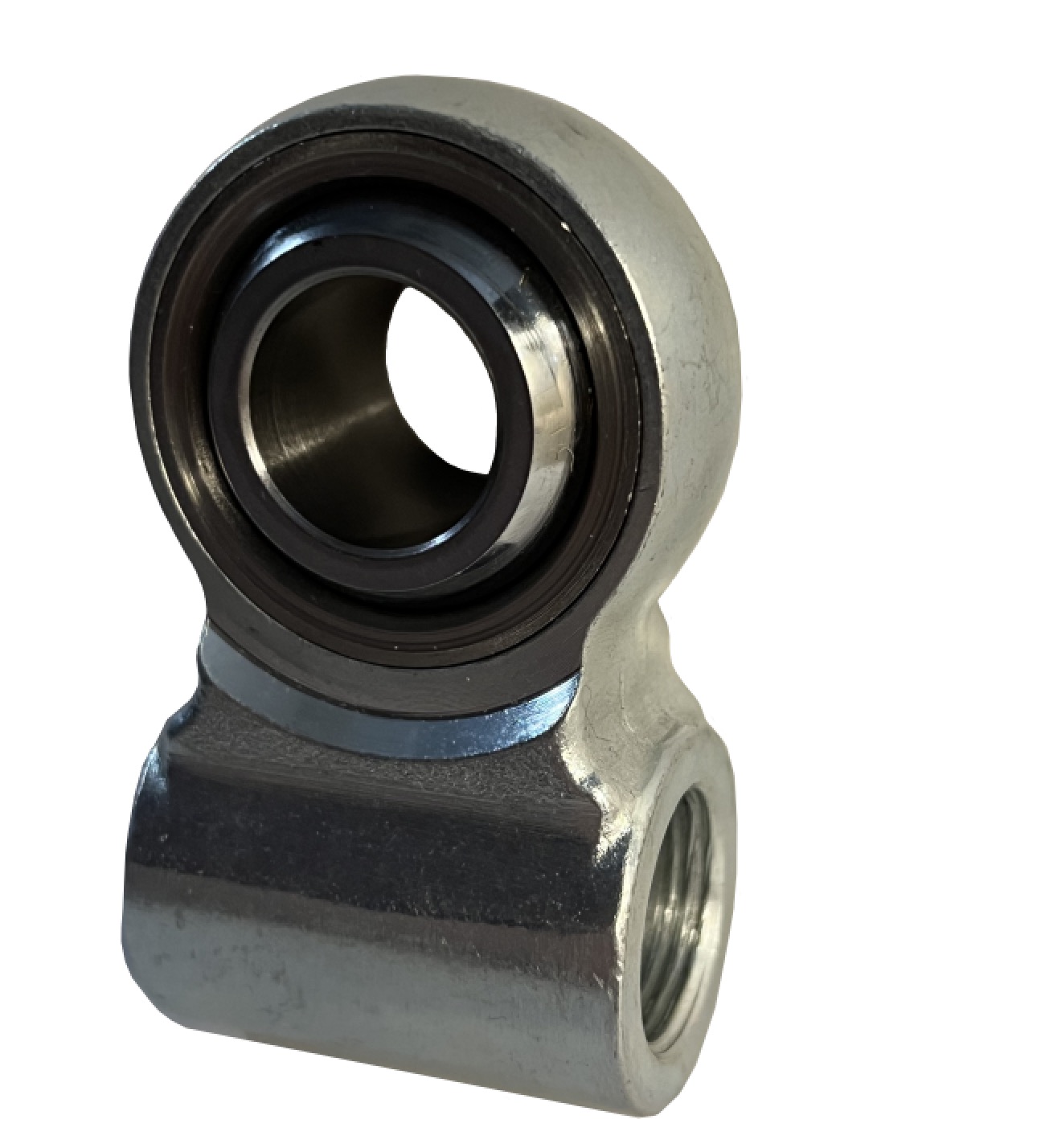

OTF-6 — Bearings, Spherical Rod End photo
OTF-6 dimensional drawing

OTF-6

Bearings, Spherical Rod End · Female

Female 3/8-24 RH Steel Housing, PTFE Race Offset Housing Thread Design Patent Pending

Part numberOTF-6
CategoryBearings, Spherical Rod End
TypeFemale
Thread3/8-24 RH
A0.376
B0.7125
C1.839
D1.294
G0.950
H0.900
J1.090
M0.407
N0.500
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: OTF-series spherical rod ends may be assembled to a rod, pipe, tube or cable connecting linkage to allow misalignment between two moving points. The offset thread feature provides for a unique unlimited adjustment opportunity Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance. Bearing Race: PTFE Housing: low carbon steel, plated and dichromate treated for corrosion resistance. Patented: US Patent# D1,097,902
