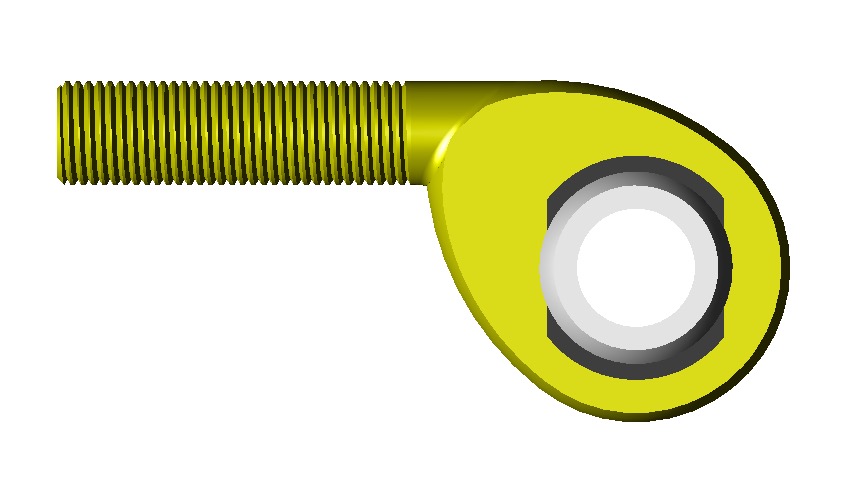

MXOL-3 — Bearings, Spherical Rod End photo

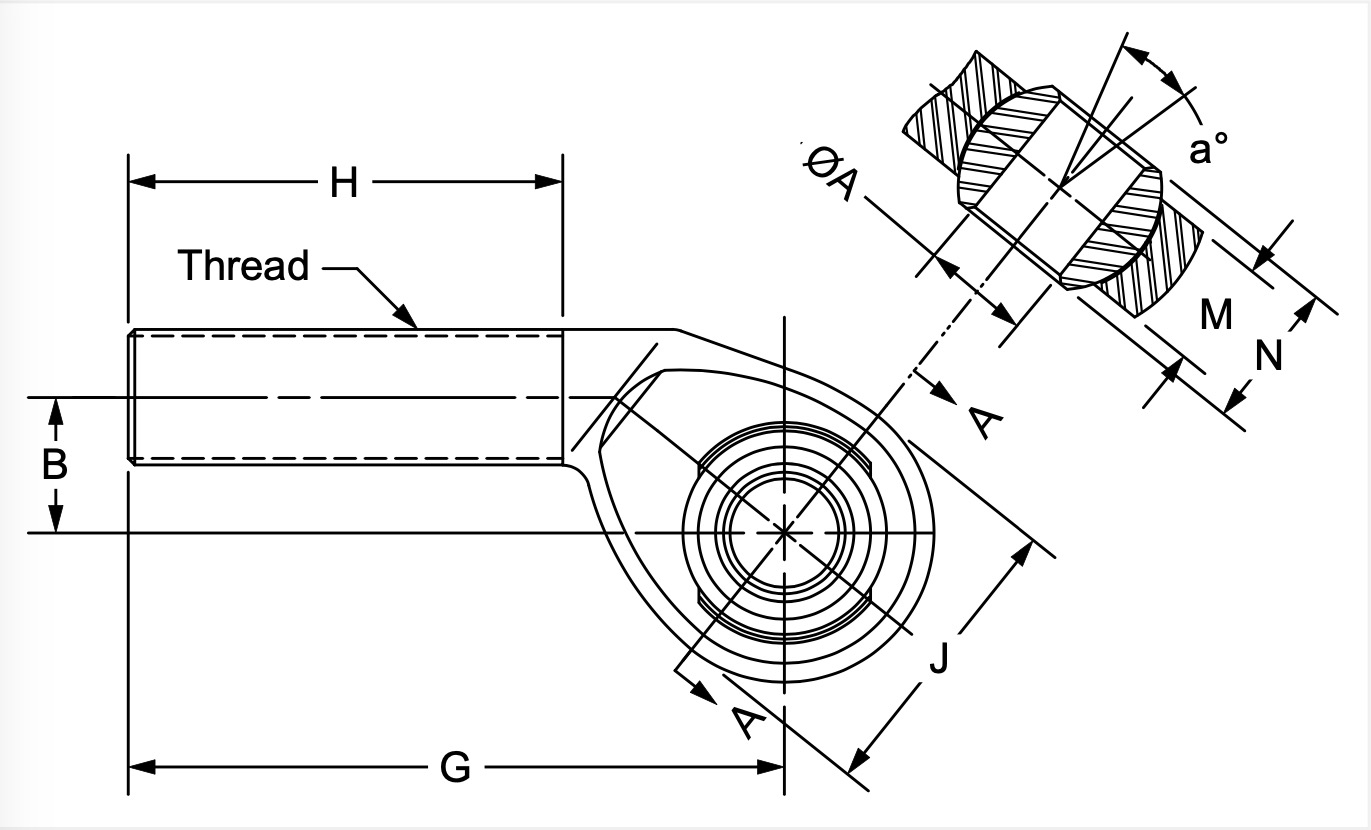

MXOL-3 dimensional drawing

MXOL-3

Bearings, Spherical Rod End · Male

Male 10-32 LH Chrome Moly Housing, Nylon Race Offset Housing

Part numberMXOL-3
CategoryBearings, Spherical Rod End
TypeMale
Thread10-32 LH
A (Bore)0.190
B0.309
G1.327
H0.750
J0.625
M0.250
N0.312
a°25
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: MXO-series spherical rod ends may be assembled to a pipe or tube connecting linkage to allow misalignment between two moving points. The offset thread feature provides for a unique unlimited adjustment opportunity Ball: heat treated, hard chrome plated bearing steel Bearing Race: slotted nylon Finish: bright polished chrome Housing: 4130 heat treated chrome moly steel
