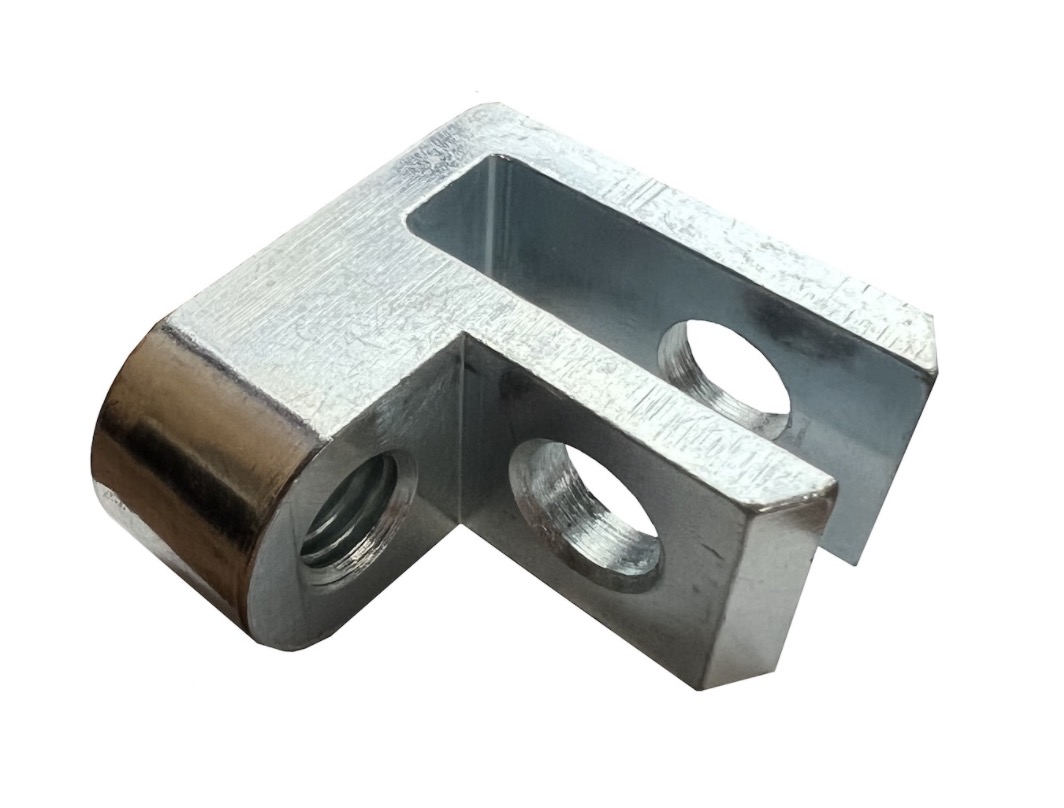

MTCV-8S-ZCHF — Clevis and Yoke Ends photo

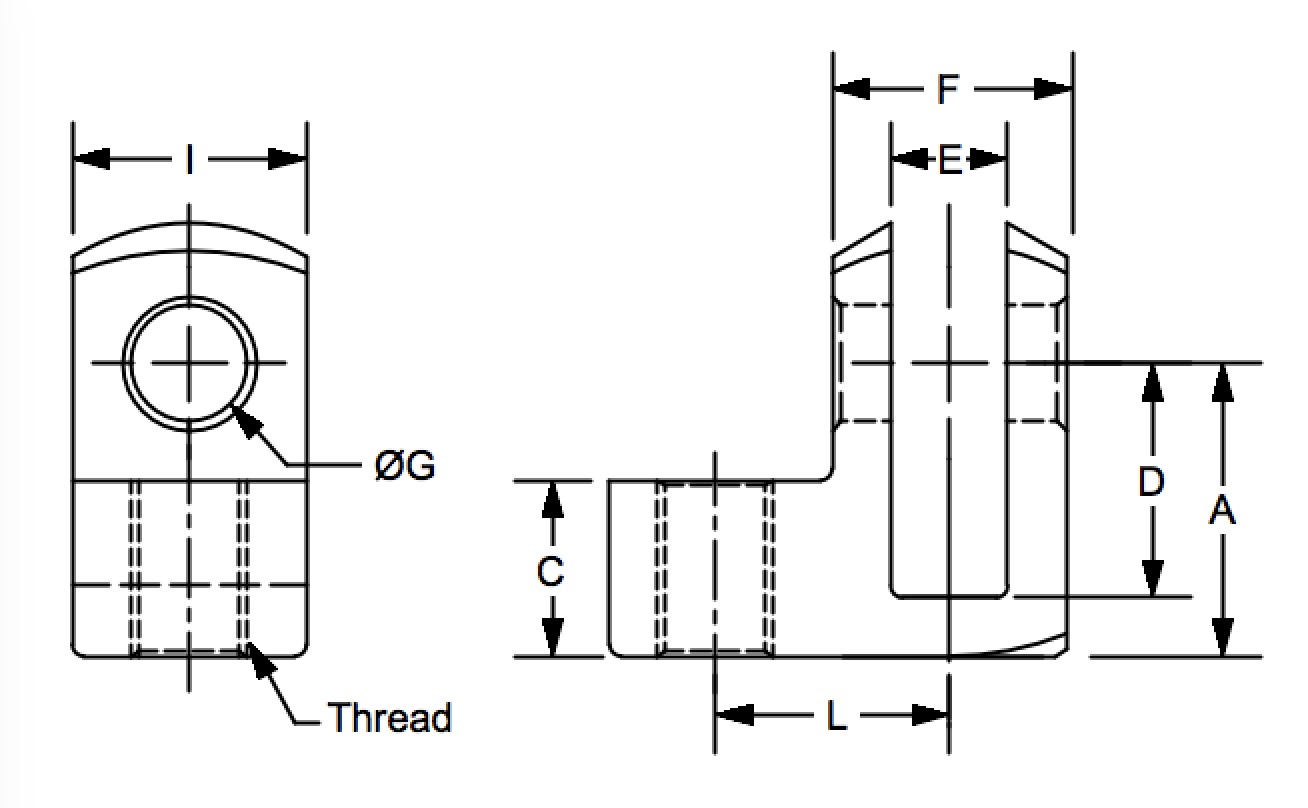

MTCV-8S-ZCHF dimensional drawing

MTCV-8S-ZCHF

Clevis and Yoke Ends · Female

Female M8 x 1.25 RH Offset 8 x 16 Housing Zinc Clear Hex Free (ROHS) Turned Construction

Part numberMTCV-8S-ZCHF
CategoryClevis and Yoke Ends
TypeFemale
ThreadM8 x 1.25 RH
A20
C12
D16
E8.15
F16
G8
i16
L15.5
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Attaching Hardware: Clevis pins, cotter pins, safety clips, etc. are available in volume. Construction: per DIN 71752, low carbon steel, zinc plated except for 'offset' feature Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
