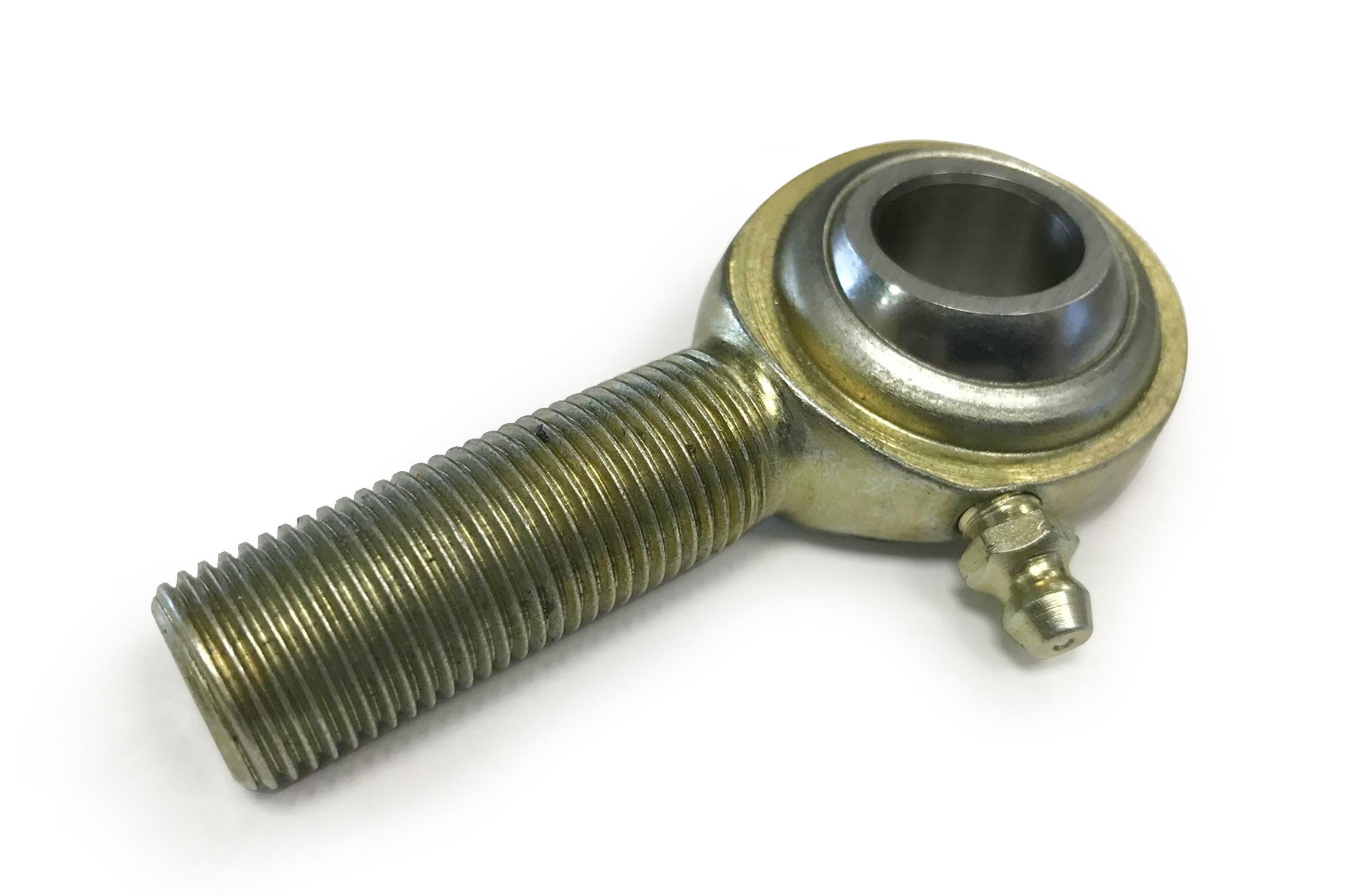

MSM-7Z
Bearings, Spherical Rod End · Male
Male 7/16-20 RH Steel Housing, Steel Race 0.4385 Bore with Grease Zerk
| Part number | MSM-7Z |
| Category | Bearings, Spherical Rod End |
| Type | Male |
| Threads | 7/16-20 RH |
| Stud Included | no |
| Plating | Zinc Yellow |
| A | 0.4385 |
| G | 2.125 |
| H | 1.375 |
| J | 1.125 |
| M | 0.437 |
| N | 0.562 |
Product overview
Ball: low carbon steel, surface hardened for wear resistance and plated for corrosion resistance.
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Housing: low carbon steel, plated and dichromate treated for corrosion resistance.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MSML-6).
Mounting Stud: an optional feature specified by adding an “S” after the nominal size (i.e., MSM-6S).
Race: the MSM-series features a close fit between the ball and the housing that allows the housing member itself to act as the bearing race.
