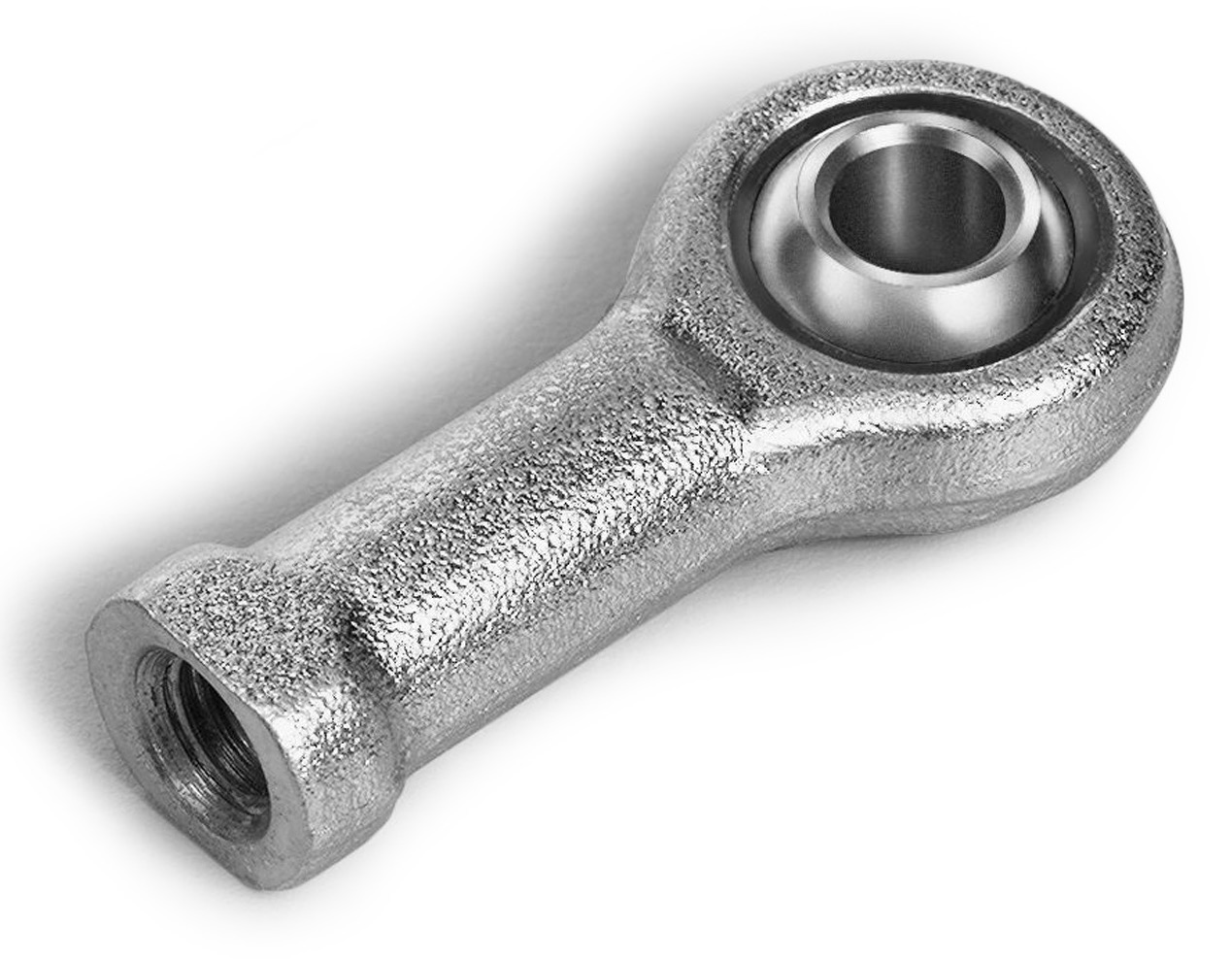

MPF-4-3-ZCHF
Bearings, Spherical Rod End · Female
Female 10-32 RH Steel Housing, Nylon Race 0.251 Bore Plated Zinc Clear Hex Free
| Part number | MPF-4-3-ZCHF |
| Category | Bearings, Spherical Rod End |
| Type | Female |
| Threads | 10-32 RH |
| Stud Included | No |
| Plating | ZCHF |
| A | 0.251 |
| G | 1.312 |
| H | 0.750 |
| J | 0.750 |
| M | 0.281 |
| N | 0.375 |
| O | 0.469 |
Product overview
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Construction: This series features an injection molded, fiber reinforced nylon bearing race. The ball is low carbon steel, surface hardened for wear resistance and plated for corrosion resistance. The housing is low carbon steel, plated and dichromate treated for corrosion resistance.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MPFL-6).
