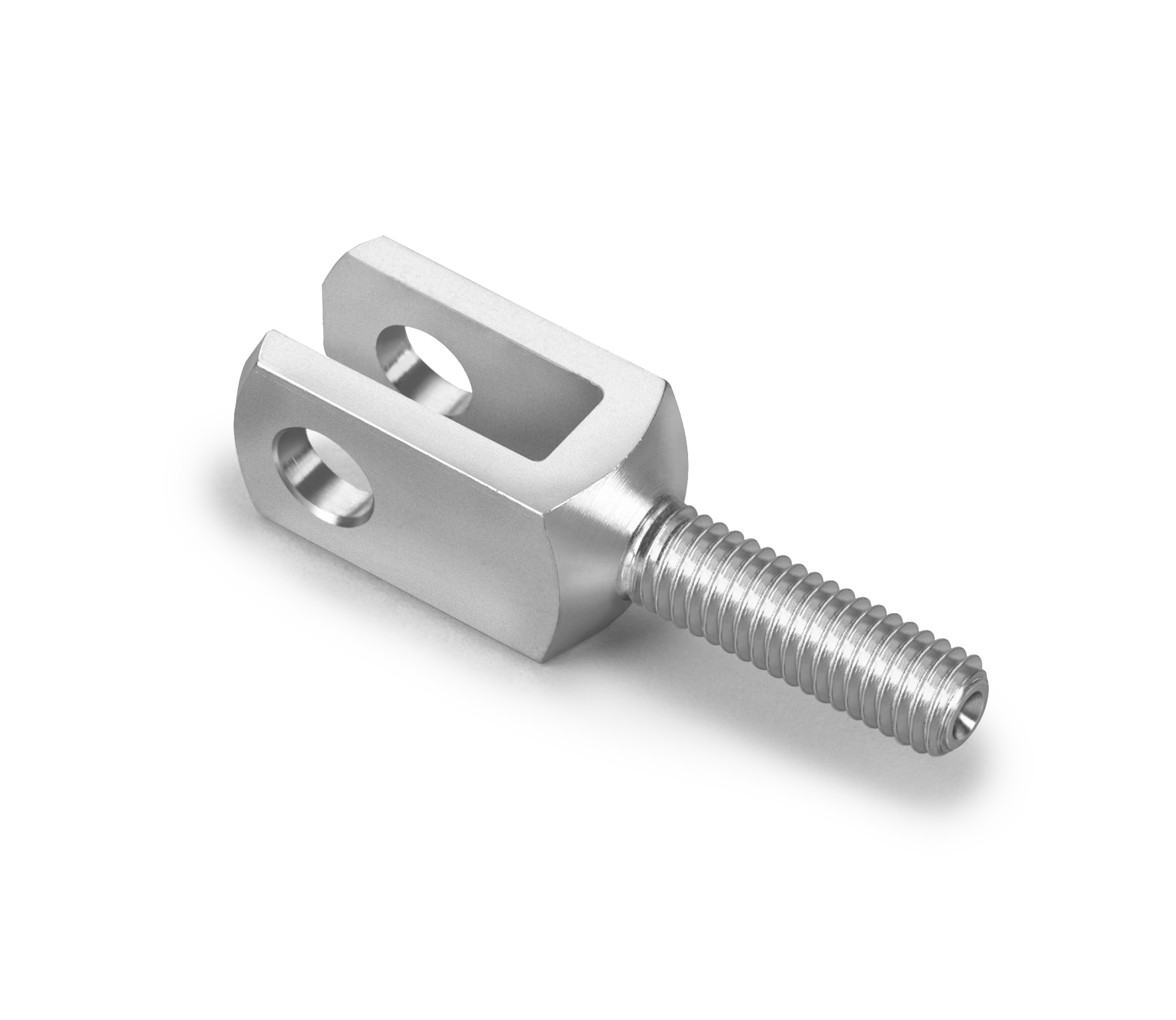

MMC-10
Clevis and Yoke Ends · Male
Male M10 x 1.50 RH 20mm Pin Holes Zinc Clear (Silver) Plating Turned Housing Construction
| Part number | MMC-10 |
| Category | Clevis and Yoke Ends |
| Type | Male |
| Threads | M10 x 1.50 RH |
| Plating | Zinc Clear |

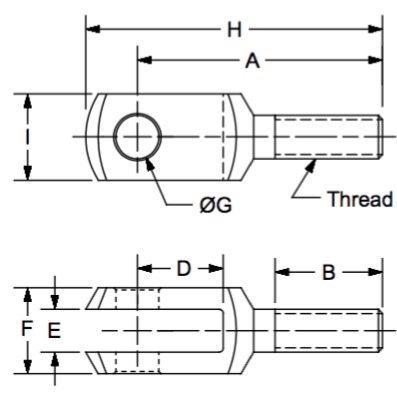

| A | 57 |
| B | 30 |
| D | 20 |
| E | 10 |
| F | 20 |
| G | 10 |
| H | 69 |
| I | 20 |
Product overview
Application: metric clevis ends (also called "yoke ends") are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point.
Attaching Hardware: Metric clevis spring pins, cotter pins, safety clips, etc. are available.
Construction: Per DIN 71752.
Cost Savings Tip: cost effective designs should always include the entire tube-nut-yoke assembly, as opposed to purchasing these components separately.
Finish: plated zinc with a zinc clear dichromate treatment.
Material: low carbon steel.
