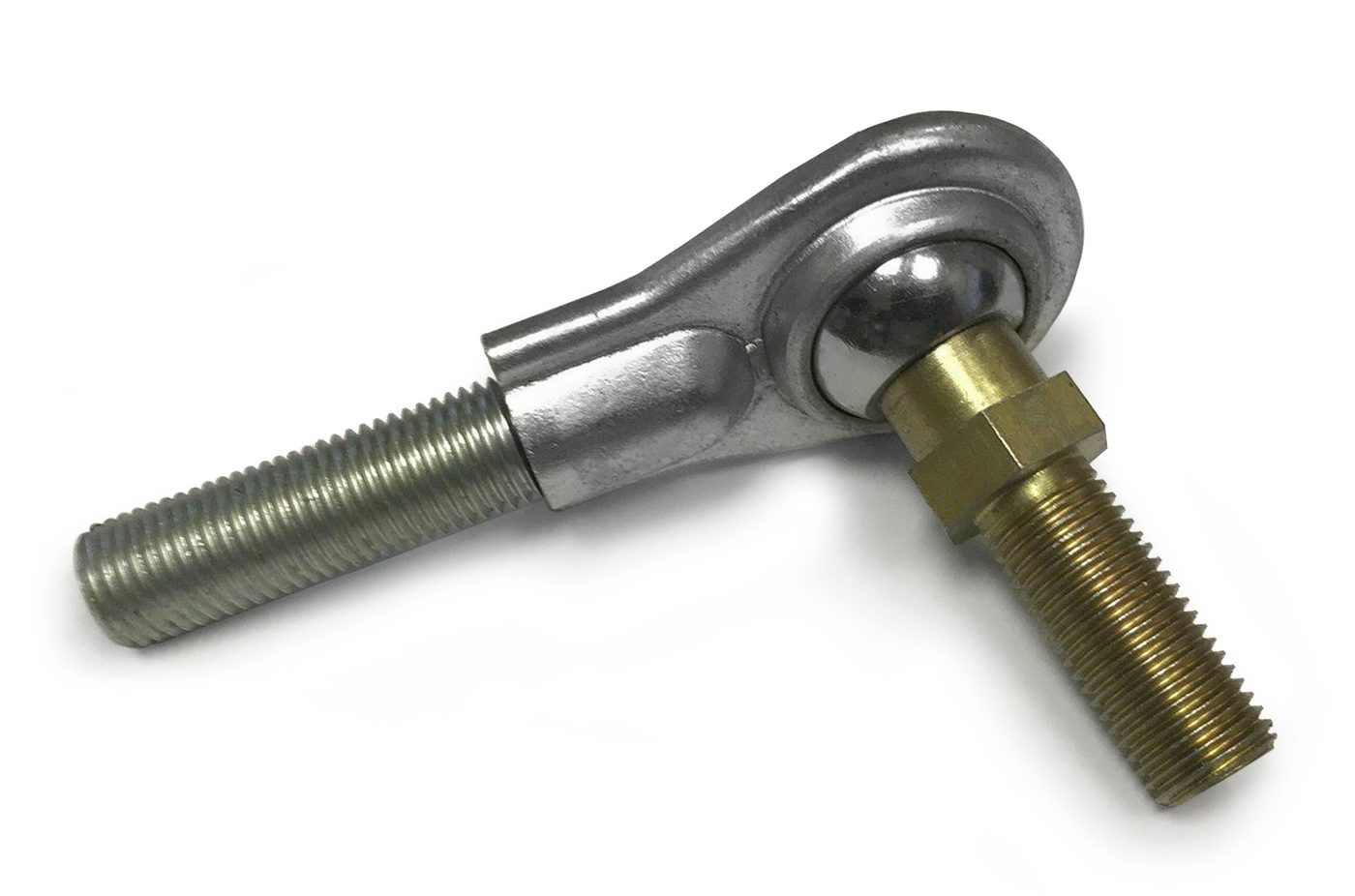

MKM-4S
Bearings, Spherical Rod End · Male
Male 1/4-28 RH 0.251 Bore Light Duty Housing with Integral Ball Stud
| Part number | MKM-4S |
| Category | Bearings, Spherical Rod End |
| Type | Male |
| Threads | 1/4-28 RH |
| Stud Included | Yes |
| A | 0.251 |
| B | 0.300 |
| D | 0.469 |
| E | 0.562 |
| F | 0.375 |
| G | 1.862 |
| J | 0.850 |
| M | 0.287 |
| N | 0.375 |
Volume pricing — unit price by quantity
| Quantity | Unit price |
|---|
| 1 | $15.72 |
| 2+ | $9.95 |
| 3+ | $8.39 |
| 4+ | $7.97 |
| 5+ | $7.72 |
| 10+ | $5.59 |
| 25+ | $4.83 |
| 50+ | $3.64 |
USD list price. Volume & dealer pricing confirmed on quote.
Product overview
Application: MKM-series spherical rod ends may be purchased as individual components, or as part of a linkage assembly (ie: with the connecting rod or tubular linkage).
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Construction: the MKM-series features a low-cost stamped housing.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MKML-6).
Mounting Stud: an optional feature specified by adding an "S" after the nominal size (i.e., MKM-6S).
Plating: the low carbon steel, surface hardened ball, and the steel housing are zinc plated.
