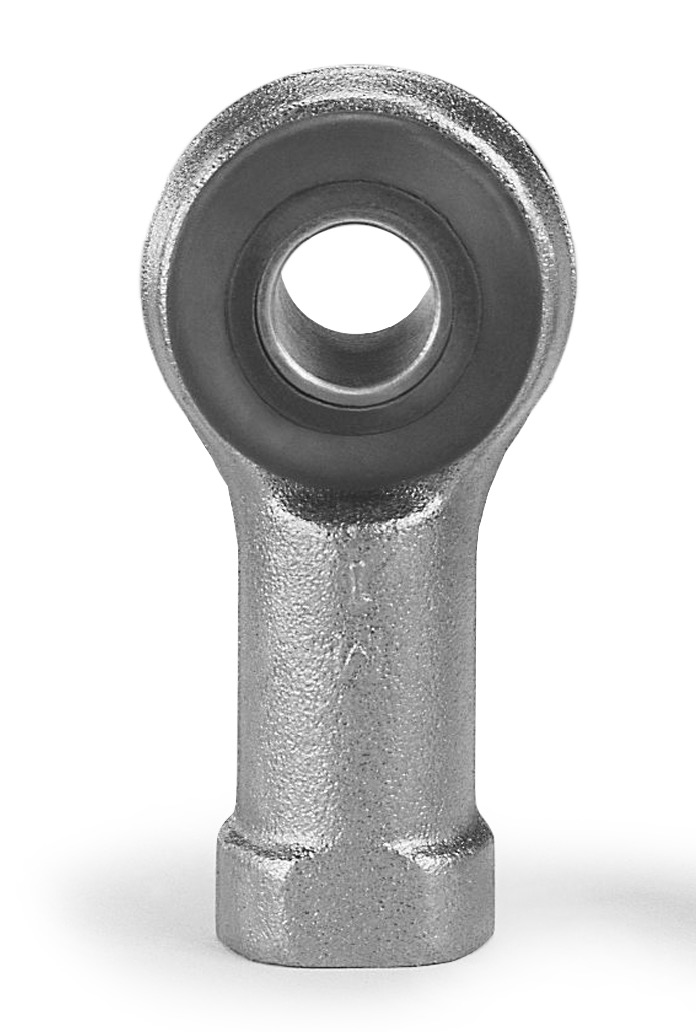

MFIR-8
Rod Ends, Isolated · Female
Female 1/2-20 RH 0.503 Bore 0.980 Width 2.125 Length Rubber Bushing

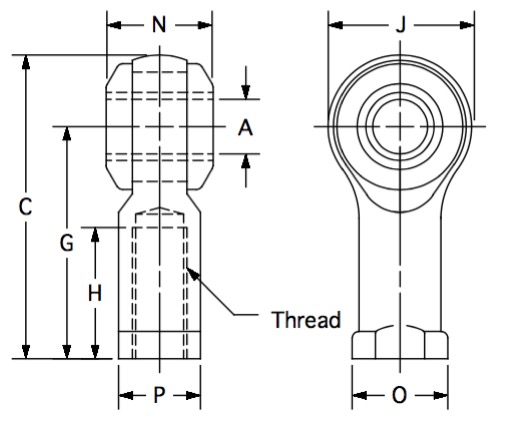

| Part number | MFIR-8 |
| Category | Rod Ends, Isolated |
| Type | Female |
| Threads | 1/2-20 RH |
| A | 0.503 |
| C | 2.780 |
| G | 2.125 |
| H | 1.160 |
| J | 1.312 |
| N | 0.980 |
| O | 0.875 |
| P | 0.750 |
Product overview
Application: MCP isolated linkage rod ends may be assembled to a rod, pipe, tube or cable connecting linkage to reduce the structural noise and vibration often generated by drive lines, engines, transmissions, motors, mufflers, hydraulic systems, steering pumps, etc. An isolated rod end interrupts the traditional noise path found in control cables, cab mounts, hydraulic lines, radiator mounts, sub frames, control linkages, supports and braces.
Construction: forged steel housing, plated zinc yellow, with an elastomeric rubber bushing and a plated steel insert.
Specials: Specials are available upon request and in volume.
Video: https://www.youtube.com/watch?v=sxzO_ZCOEl4
