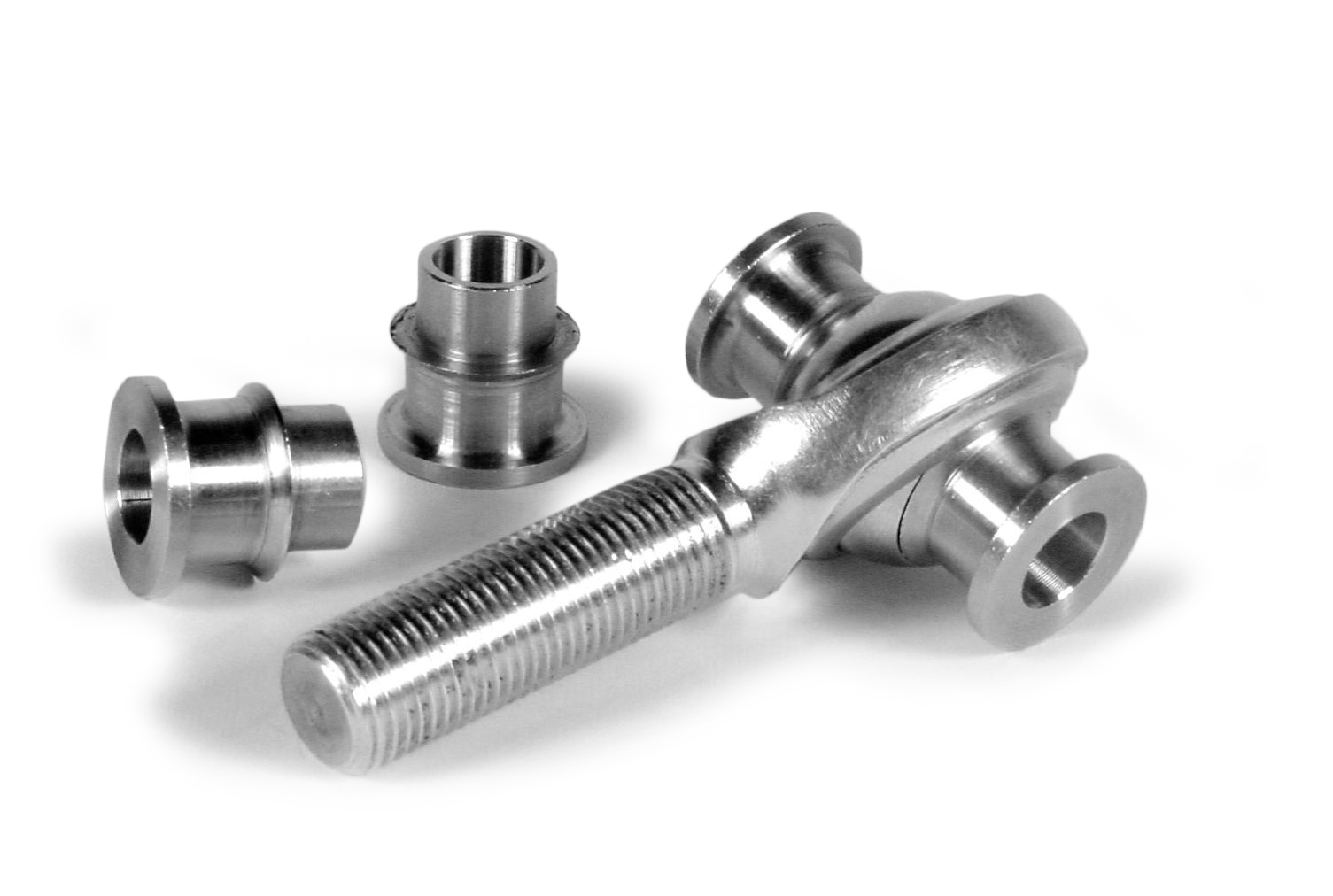

HMBSS-10-8 — Rod End Misalignment Inserts photo
HMBSS-10-8 dimensional drawing

HMBSS-10-8

Rod End Misalignment Inserts · fits 5/8 Rod End Bore

fits 5/8 Rod End Bore 1/2 Insert Bore Size Straight Style Stainless Steel

Part numberHMBSS-10-8
CategoryRod End Misalignment Inserts
Typefits 5/8 Rod End Bore
MaterialStainless Steel
A0.6210
B0.629
C0.875
D0.841
E0.485
F0.8019
G0.505
J0.075
K0.090
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Application: High Misalignment Inserts are used in conjunction with hex head cap screws (bolts) to increase the misalignment of the rod end. The insert keeps the head of the hex head cap screw (bolt) away from the rod end housing, thereby increasing the misalignment of the rod end. Alternatives: Most of our rod ends are available with 'factory installed' rod end bolts. Or, we also offer 'field installable' rod end studs.
