Home / Catalog / Turnbuckles / HBT6-3.00

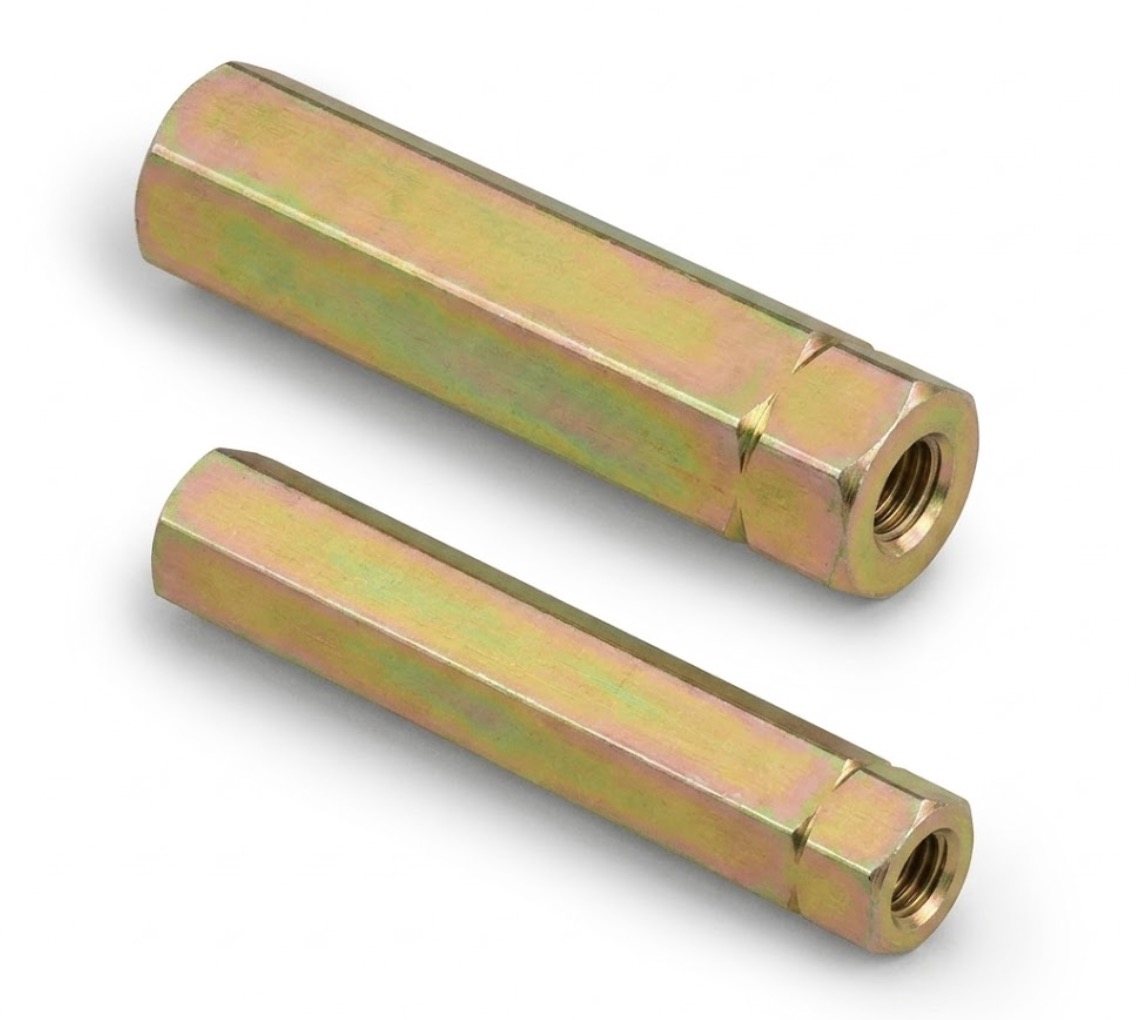

HBT6-3.00 — Turnbuckles photo
HBT6-3.00 dimensional drawing

HBT6-3.00

Turnbuckles · 3/8-24 LH and RH Threads

3/8-24 LH and RH Threads 3.00 Overall Length 4.580 to 6.126 overall length range if spherical rod ends added Zinc Yellow Plated Steel Hex Bar Tube

Part numberHBT6-3.00
CategoryTurnbuckles
Type3/8-24 LH and RH Threads
Threads3/8-24
MaterialZinc Yellow
Thread Length1.375
Part Length3.00
Sphcl Rod End Assy4.580 to 6.126
Hex Size0.563 Hex
⚠️ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
Buy online →View in interactive catalogRequest a quote

Product overview

Finish: plated zinc with a yellow dichromate treatment. Length Determination: the dimensions above show what center-to-center length can be achieved by the connecting linkage length shown for male spherical rod ends. Material: low carbon steel. Specials: specials are available at any volume. Standards: MCP offers standard connecting tube lengths to provide fast and economical linkage options. Common names for these include turnbuckles, threaded hex bar linkage tubes, threaded adjusters, and coupling nutes.
