BTC-250C-H
Clevis and Yoke Ends · Female

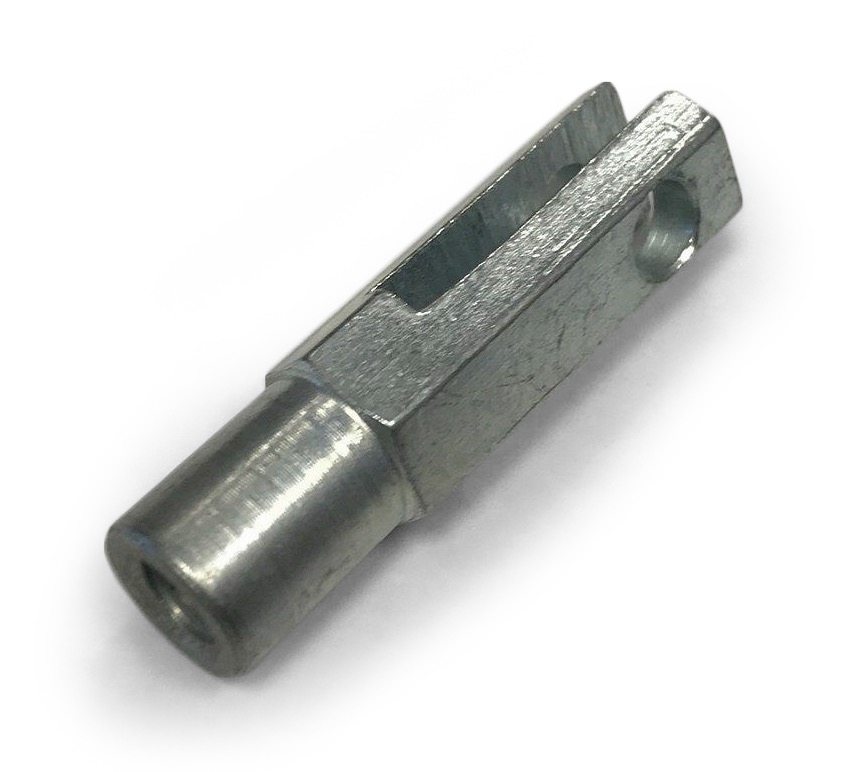

Female 1/4-20 RH 0.205 Pin Holes Door Linkage Clevis Zinc Clear Plating Turned Construction

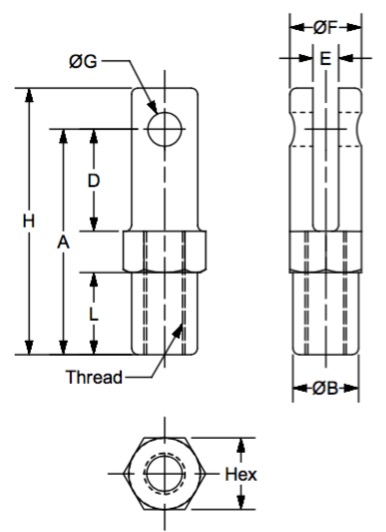

| Part number | BTC-250C-H |
| Category | Clevis and Yoke Ends |
| Type | Female |
| Threads | 1/4-20 RH |
| A | 1.374 |
| B | 7/16 Hex |
| D | 0.874 |
| E | 0.157 |
| F | 0.433 |
| G | 0.205 |
| H | 1.626 |
| I | 0.402 |
Product overview
Application: inch clevis ends are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point. This special clevis is ideal for door linkage clevises on off-highway equipment cabs.
Attaching Hardware: Inch clevis spring pins, cotter pins, safety clips, etc. are available in volume.
Construction: Similar to DIN 71752.
Finish: plated zinc clear.
Material: low carbon steel.
Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
Cost Savings Tip: cost effective designs should always include the entire rod-nut-yoke assembly, as opposed to purchasing these components separately. Specify the use of clevis spring pins to reduce assembly costs.
