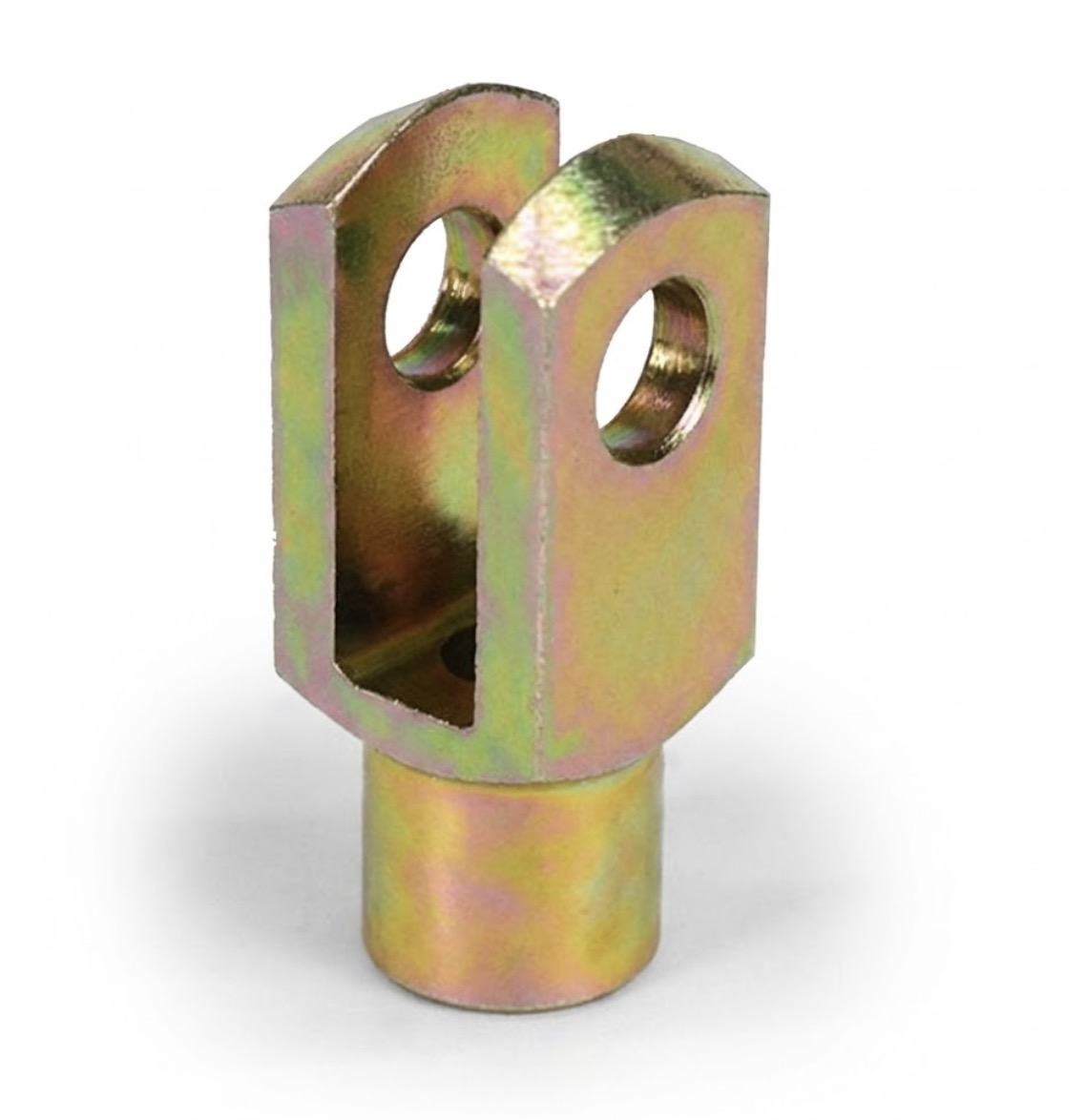

BTC-187L
Clevis and Yoke Ends · Female
Female 10-32 RH 0.188 Pin Holes 3/16 Long Body Zinc Yellow Plating Turned Construction
| Part number | BTC-187L |
| Category | Clevis and Yoke Ends |
| Type | Female |
| Threads | 10-32 RH |
| A | 1.162 |
| B | 0.354 |
| D | 0.787 |
| E | 0.1875 |
| F | 0.375 |
| G | 0.1875 |
| H | 1.417 |
| I | 0.375 |
Product overview
Application: inch clevis ends are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point.
Attaching Hardware: Inch clevis spring pins, cotter pins, safety clips, etc. are available in volume.
Construction: Similar to DIN 71752.
Finish: plated zinc with a yellow dichromate treatment.
Material: low carbon steel.
Turnbuckle Option: consider using MCP's exclusive turnbuckle clevis to eliminate the need for left hand threads and to allow adjustment of linkage lengths after installation.
Cost Savings Tip: cost effective designs should always include the entire rod-nut-yoke assembly, as opposed to purchasing these components separately. Specify the use of clevis spring pins to reduce assembly costs.
