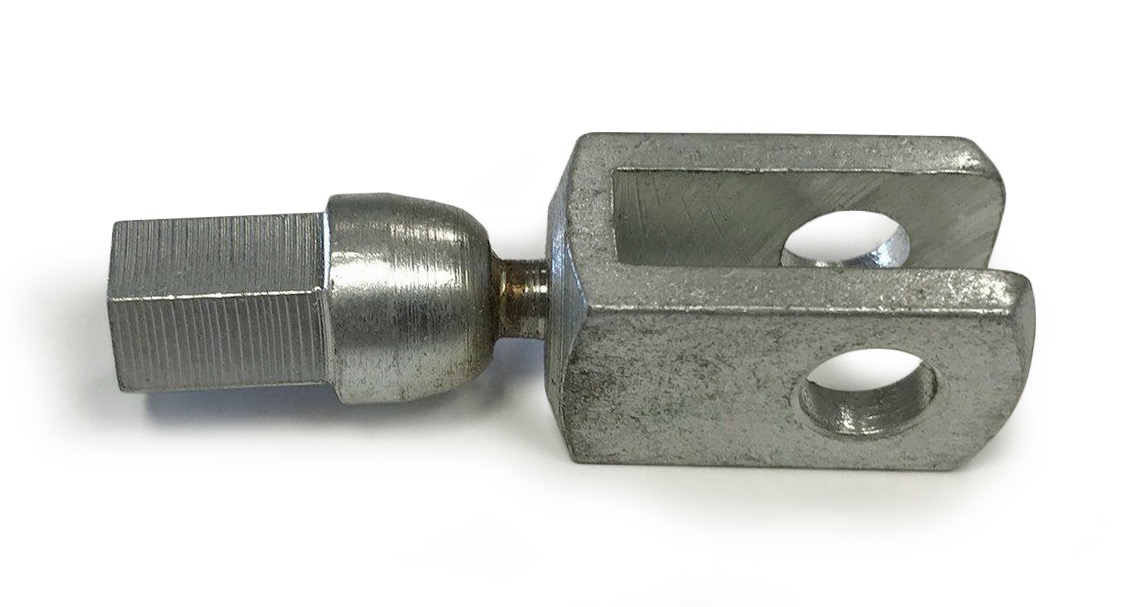

ATCM-6
Clevis and Yoke Ends · Female
Female M6 x 1.00 RH 6mm Pin Holes 6 x 12 Housing Zinc Silver Plating, Turned Housing Articulated Turnbuckle Design

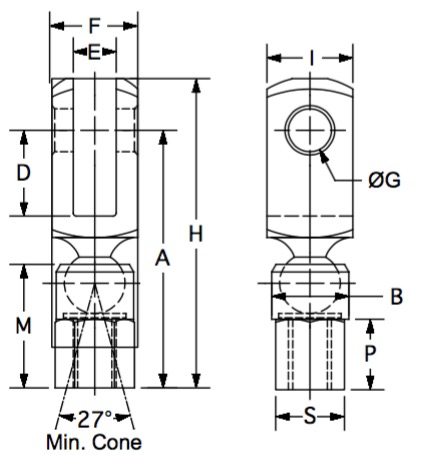

| Part number | ATCM-6 |
| Category | Clevis and Yoke Ends |
| Type | Female |
| Threads | M6 x 1.00 RH |
| A | 36.0 |
| B | 10.0 |
| D | 12.0 |
| E | 6.0 |
| F | 12.0 |
| G | 6.0 |
| H | 43.0 |
| I | 12.0 |
| M | 16.6 |
Product overview
Finish: Plated Zinc Clear
Material: mild steel
Description: Articulated Clevis Design. Enables misalignment capabilities with a clevis design. The spinning barrel eliminate the need for left hand threads, and allows adjustment after installation without removing the clevis pins or clevis spring pins. Great product for direct line or end line pull linkage applications such as shift levers on hydraulic system control valves.
Kits/Assemblies: Midwest Control Products Corp manufactures complete rigid (rod and tube based) control linkages, as well as push-pull cable controls.
Online Video: https://www.youtube.com/watch?v=85jDSEm9dsg
