2807021280

Product overview

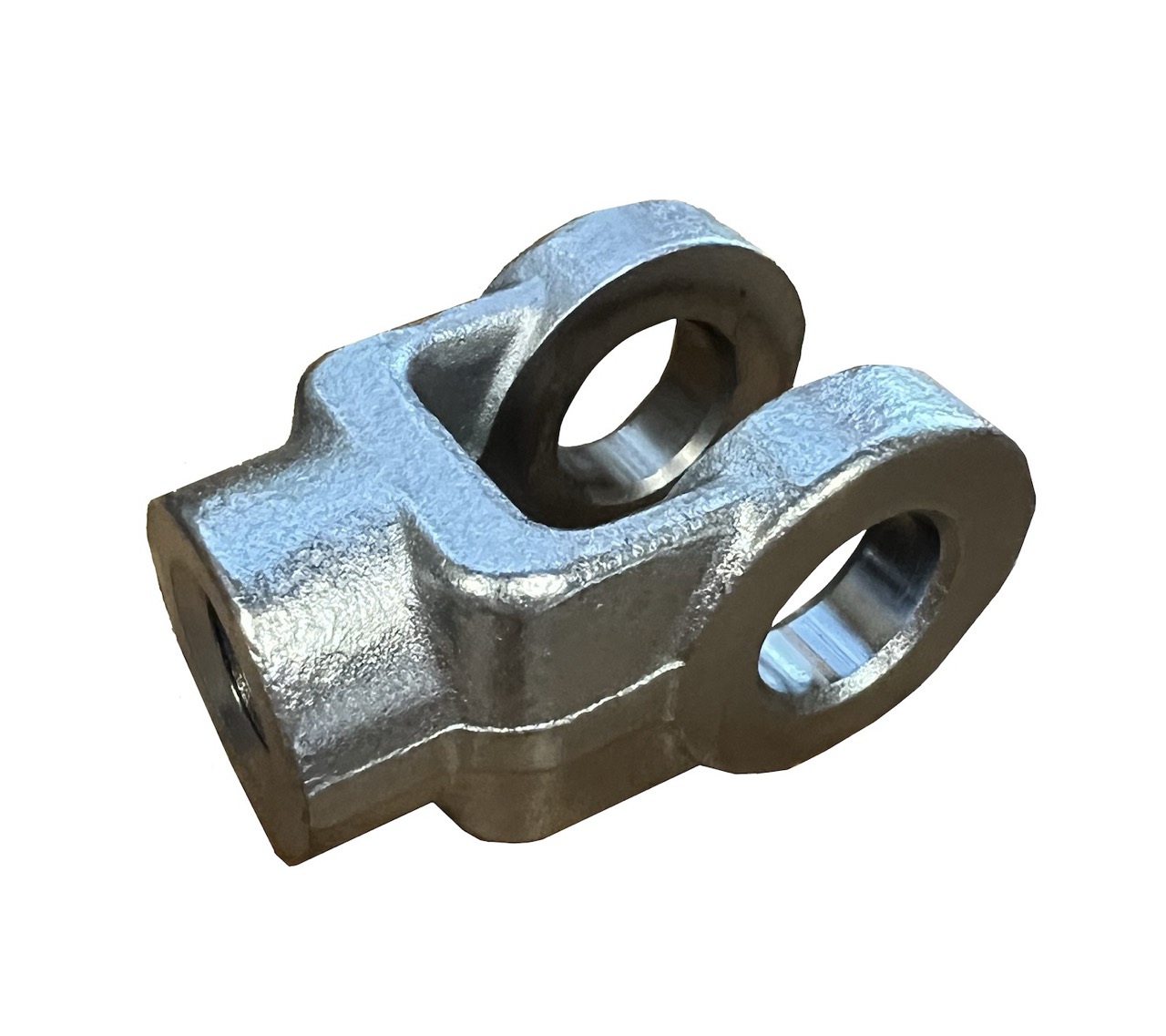

Application: adjustable yoke ends (also called "clevis ends") are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point. Construction: forged low carbon steel. Dimensions are per SAE J493. Tolerances are per our standard. Finish/Plating Code: the suffix of the part number indicates the plating color (i.e., 280377 would be zinc yellow). Codes: 77 = zinc yellow 80 = zinc clear, ZCHF = zinc clear hex free (ROHS) Specials: almost any type of pin hole or thread can be put into a yoke end at a very reasonable cost. Modifications to the actual housing dimensions require large volumes to remain economical. Other names: Horquillas Forjadas, adjustable clevis ends, adjustable yoke ends, billet ends, billet linkage, billet rods, cable end, cable yoke end, cetop G3, chapes, clevis end, clevis rod end bearing, clevis rod ends, clevis yoke, forged clevis end, forged yoke end, gabelkopf, gabelkopfe, gelenkkopf, gelenkkopfe, heavy duty yoke linkages, linkage design, linkage ends, machined steel clevises, mechanical controls, plated yoke ends, plated linkages, rod end clevis, rod ends, sae clevis ends, sae yoke ends, splintbolzen, throttle yoke end, throttle rod end, threaded clevises, yoke ends
