010.50LR-T8FS-T8FS
Linkage · Connecting Rod
Connecting Rod 10.50 inches 1/2-20 Threads 1/2-20 Threads on both Rod End Studs PTFE Race Spherical Rod End Bearing with Integral Ball Stud

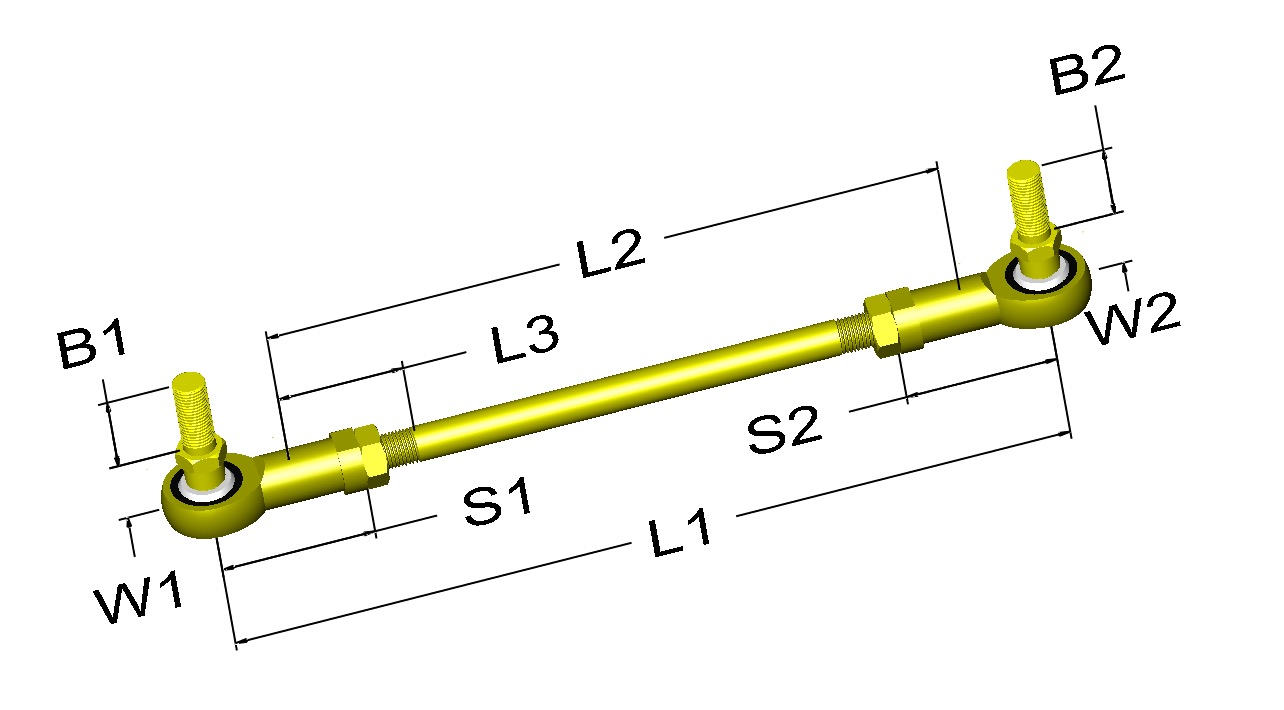

| Part number | 010.50LR-T8FS-T8FS |
| Category | Linkage |
| Type | Connecting Rod |
| Thread | 1/2-20 |
| Nominal Length | 10.50 |
| L1 Min | 9.876 |
| L1 Max | 11.250 |
| Material | Plated Steel |
| A1 | 0.501 |
| A2 | 0.501 |
| B1 | 1.125 |
| B2 | 1.125 |
| L2 (ref) | 8.000 |
Product overview
Note: We show these as artificially in stock as they are made from components readily available within our system. True lead times could be anywhere from 1 week to 8 weeks. Email info@midwestcontrol.com with the part number and the quantity you are requesting, along with your company name, address, etc (contact details) with the subject line, "What is the lead time for XYZ pieces of part number XYZ" and we'll respond to you within a few working hours of the actual lead time.
Materials: zinc plated steel.
The spherical rod ends used in this linkage assembly have a PTFE bearing race and utilize our MTF-S series of spherical rod end bearings. The spherical ball and housing are zinc plated. The rod ends each have a right hand 'integral' stud in them.
The nuts used in this assembly are grade 2 jam nuts. The nuts are zinc plated.
The rod used in this assembly is typically zinc plated 1018 steel, but we reserve the right to substitute a 300-series stainless steel for lower volume orders.
Midwest Control Products Corp sells linkage components and assemblies, both standard and custom, with end components including ball joints, clevises, yoke ends, spherical rod ends, linkage rods, linkage tubes, and push-pull cables. If you have a custom application, please email it to mcr@midwestcontrol.com.
